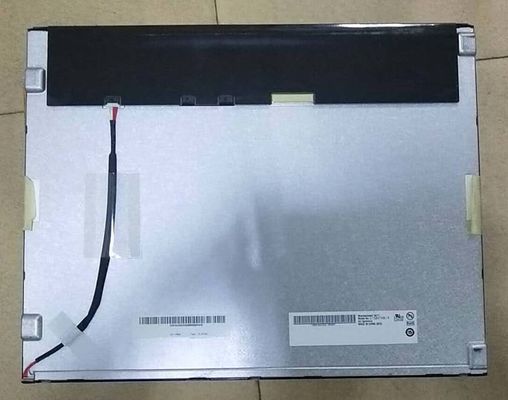

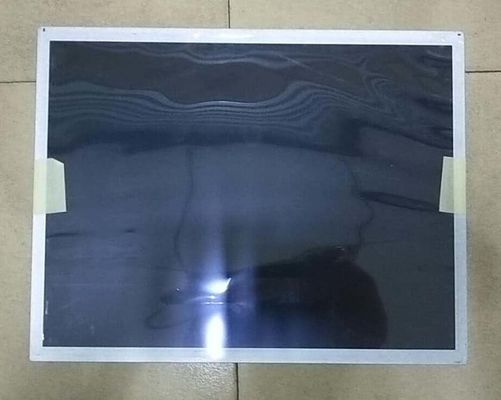

1024×768 XGA 85PPI 390cd/M2 TFT LCD Diaplay AUO G150XTK01.0

Large Image : 1024×768 XGA 85PPI 390cd/M2 TFT LCD Diaplay AUO G150XTK01.0

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9002
Model Number:	G150XTK01.0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD70
Packaging Details:	15 pcs / box 20.0 Kgs 434×380×353 mm (L×W×H)
Delivery Time:	1-3 days
Payment Terms:	T/T, Western Union, PAYPAL, ESCROW
Supply Ability:	5000PCS/MONTH

Contact Now

1024×768 XGA 85PPI 390cd/M2 TFT LCD Diaplay AUO G150XTK01.0

Description

SIZE:	15.0INCH	RESOLUTION:	1024(RGB)×768 (XGA) 85PPI
BRIGHTNESS:	390 Cd/m² (Typ.)	TEMPERATURE:	Operating Temp.: -30 ~ 85 °C
Signal Type:	LVDS (1 Ch, 6/8-bit) , Connector 20 Pins
High Light:	390cd/M2 TFT LCD Diaplay , XGA 85PPI TFT LCD Diaplay , AUO G150XTK01.0

AUO 15.0INCH G150XTK01.0 1024(RGB)×768 (XGA) 85PPI 390 cd/m² (Typ.) Storage Temp.: -30 ~ 85 °C INDUSTRIAL PANEL

AUO G150XTK01.0 Application Details

Basic Information :

Brand

Model

G150XTK01.0

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

15.0 inch

Alias

Environment :

Storage Temp.

-30 ~ 85 °C

Operating Temp.

-30 ~ 85 °C

RoHS

Vibration

1.5G (14.7 m/s²)

AUO G150XTK01.0 Mechanical Details

Pixel Features :

Resolution

1024(RGB)×768, XGA

Dot Pitch(mm)

0.099×0.297 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.297×0.297 (H×V) [85PPI]

Mechanical Size :

Active Area(mm)

304.128(H) × 228.096(V)

Bezel Area(mm)

314.2(H) × 237.7(V)

Outline Dim.(mm)

326.5(H) × 253.5(V)

Depth(mm)

10.0 (Max.)

Outline Features :

Form Style

Flat Rectangle

Shape Style

Aspect Ratio

4:3 (H:V)

Orientation

Landscape type

Touch Panel :

Touch Points

5 points

Touch Panel

On-Cell Touch

TP Controller

With touch controller

Touch Signal

USB

Mounting :

Side mounting holes (4-M3) on left, right bezel

Other Spec :

Weight

1.15Kgs (Max.)

Treatment

Antiglare, Hard coating (3H)

AUO G150XTK01.0 Optical Details

Basic Information :

Luminance(cd/m²)

390 (Typ.)

Contrast Ratio

700:1 (Typ.) (Transmissive)

Viewing Angle

80/80/70/80 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

Response(ms)

5.7/2.3 (Typ.)(Tr/Td)

Color Performance :

White Coordinate

Wx:0.313; Wy:0.329

Display Colors

262K/16.2M (6-bit / 6-bit + FRC)

Color Temperature

6485K

White Uniformity

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

64%

sRGB

85% coverage

Adobe RGB

66% coverage

DCI-P3

66% coverage

Rec.2020

47% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G150XTK01.0 Interface Details

Signal Electrical :

Voltage Supply

3.3V (Typ.)

Current Supply

450/540mA (Typ./Max.)

Signal Type :

LVDS (1 ch, 6/8-bit)

Logic Voltage

1.49/1.78W (Typ./Max.)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

STM

MSB240420E

1.25 mm

20 pins

1 pcs

LVDS-20P1C8B-135A
