1.82W 1024×768 Viewing angle 89/89/89/89 G150XAN02.0 85PPI 500cd/m2 AUO TFT LCD

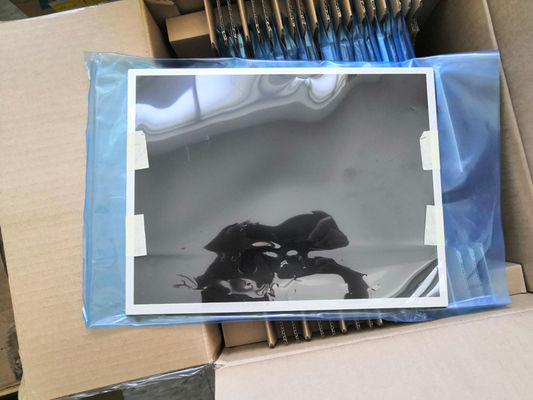

Large Image : 1.82W 1024×768 Viewing angle 89/89/89/89 G150XAN02.0 85PPI 500cd/m2 AUO TFT LCD

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9002
Model Number:	G150XAN02.0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD70
Packaging Details:	20 pcs / box 20 Kgs 430×370×350 mm
Delivery Time:	1-3 days
Payment Terms:	T/T, Western Union, PAYPAL, ESCROW
Supply Ability:	2000PCS/MONTH

Contact Now

1.82W 1024×768 Viewing angle 89/89/89/89 G150XAN02.0 85PPI 500cd/m2 AUO TFT LCD

Description

SIZE:

15.0INCH

RESOLUTION:

1024(RGB)×768 [XGA] 85PPI

BRIGHTNESS:

500 Cd/m² (Typ.)

TEMPERATURE:

Operating Temperature: -30 ~ 85 °C

Highlight:

1.82W AUO TFT LCD

500cd/m2 AUO TFT LCD

G150XAN02.0

AUO G150XAN02.0 Application Details

AUO G150XAN02.0 Optical Details

Basic Detail :	Luminance 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.2M (6-bit + FRC) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 60% sRGB 78% coverage Adobe RGB 62% coverage DCI-P3 62% coverage Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity -

AUO G150XAN02.0 Mechanical Details

Pixel Features :	Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size :	Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm Bezel Opening 309.9(W)×236.36(H) mm Overall Depth 9.0 (Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass 920g (Max.) Surface Antiglare, Hard coating (3H)

AUO G150XAN02.0 Interface Detail

Signal Electrical :

Input Current

0.46/0.55A (Typ./Max.)

Input Voltage

3.3V (Typ.)

Consumption

1.52/1.82W (Typ./Max.)

Signal Interface

LVDS (1 ch, 8-bit)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Amount

Pin Assignment

STM

MSB240420HD

1.25 mm

20 pins

1 pcs

AUO G150XAN02.0 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange No Lamp Shape - Lamp Life 50K(Min.) (Hours)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment E&T 3808K-F05N-12R 1.25 mm 5 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Input Voltage 12.0±1.2V Input Current 0.72/0.79A (Typ./Max.) Consumption 8.68/9.52W (Typ./Max.)

Basic Detail :	Manufacturer Model Name G150XAN02.0 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 15.0 inch Designed For
Maximum Ratings :	OP Temperature -30 ~ 85 °C ST Temperature -30 ~ 85 °C RoHS Vibration Level 1.5G (14.7 m/s²)
