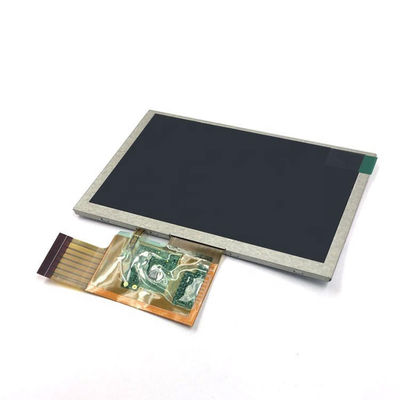

Product Details:
|
| Size: | 5 Inch | Resolution: | 800(RGB)×480 [WVGA] 188PPI |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
| Brightness: | 370 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/65/75 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | 50% NTSC TFT LCD Panel,3S3P WLED TFT LCD Panel,G050VTN01.0 |
||
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria.
2.AUO G050VTN01.0 Optical Details:
| Basic Information : | Luminance | 370 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 75/75/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 75% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G050VTN01.0 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.045×0.135 mm | Pixel Pitch(W×H) | 0.135×0.135 mm [188PPI] | |
| Physical Size : | Active Viewing | 108(W)×64.8(H) mm | Overall Dim. | 120.7(W)×76.3(H) mm |
| Bezel Opening | 111.25(W)×68.7(H) mm | Overall Depth | 3.1±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | - | |
| Fixation : | Without | |||
| Other Detail : | Mass | 58.0±2.0g | Surface | Glare (Haze 0%), Hard coating (3H) |
4.AUO G050VTN01.0 Interface Details:
| Signal Electrical : | Input Current | 75/90mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.25/0.3W (Typ./Max.) | Signal Interface | TTL (1 ch, 8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
5.FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
