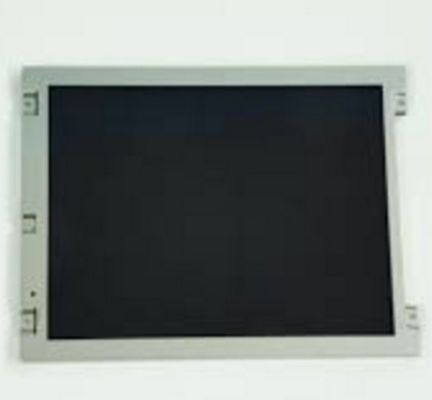

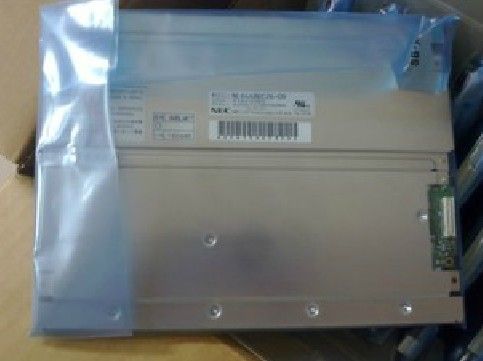

Product Details:
|
| Size: | 8.4 Inch | Resolution: | 640(RGB)×480, VGA, 95PPI |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Pixel Format: | RGB Vertical Stripe |
| Brightness: | 900cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | VGA 95PPI TFT LCD Display,900cd/m² TFT LCD Display |
||
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. NEC NL6448BC26-26C Mechanical Details:
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.089×0.267 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.267×0.267 mm (H×V) [95PPI] | |
| Mechanical Size : | Display Area | 170.88×128.16 mm (H×V) | Bezel Area | 174.0×131.4 mm (H×V) |
| Outline Dim. | 200×152 mm (H×V) | Outline Depth | 8.2±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Face mounting holes (4-Φ2.8) on left, right bezel | |||
| Other Features : | Weight | 260/280g (Typ./Max.) | Surface | Clear, Hard coating (2H), Antireflection |
3.NEC NL6448BC26-26C Optical Details:
| Basic Information : | Brightness | 900 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 57% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4.NEC NL6448BC26-26C Backlight Details:
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (84LHS17) | Amount | 4 strings | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 18.6/21.0/23.8V (Min./Typ./Max.) | Current Input | 50/55mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM08B-SRSS-TB | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ACACACAC | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
