Product Details:
|
| Size: | 5.8 Inch | Resolution: | 400*240 |
|---|---|---|---|
| Luminance: | 470 Cd/m² (Min.) | Viewing Angle: | 70/70/30/30 (Typ.)(CR≥100) |
| Support Color: | 262K 63% NTSC | Weight: | 275/300g (Typ./Max.) |
| Touch Panel: | Without | Contrast Ratio: | 630:1 (Min.) (TM) |
| Light Source: | WLED [6S2P] , 20K Hours , W/O Driver | Environment: | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 105 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 400*240 Auotomotive TFT LCD,5.8" Auotomotive TFT LCD,LB058WQ1-SD02 |
||
1.Main Information:

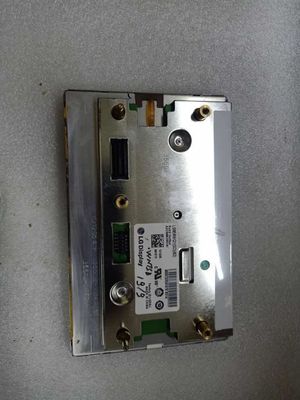

LB058WQ1-SD02 (Alias: LB058WQ1 (SD)(02)) is a 5.8" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd.with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -40 ~ 80°C , a storage temperature range of -40 ~ 105°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are following: Wide Temperature, WLED Backlight, Matte .
Based on its features,this model be applied to Automotive Display etc.
2. LG Display LB058WQ1-SD02 Optical Features :
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 470 (Min.) | 70/70/30/30 (Typ.)(CR≥100) | 15/14 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | IPS, Normally Black, Transmissive | 630 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6517K | 262K (6-bit) | X:0.311; Y:0.338 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 81% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
3. LG Display LB058WQ1-SD02 Mechanical Features:
| Panel Size : | 5.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 400(RGB)×240 [WQVGA] | RGB Vertical Stripe | 0.3159×0.316 [80PPI] | 0.1053×0.316 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 126.36(H) × 75.84(V) | 129.6(H) × 79.0(V) | 152(H) × 97(V) | 15.3 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | - | |
| Mounting : | Rear mounting Pole (4-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 275/300g (Typ./Max.) | - | Antiglare, Antireflection | ||
4. LG Display LB058WQ1-SD02 Interface Features:
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 100/190/600mA (Min./Typ./Max.) | 0.66/1.98W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9828S-40A-GFC | 0.8 mm | 40 pins | 1 pcs | ||
5. FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
