Product Details:
|
| Size: | 10.1 Inch | Resolution: | 1024*600 |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 80/80/75/80 (Typ.)(CR≥10) | Support Color: | 262K/16.7M 47% NTSC |
| Interface Type: | LVDS (1 Ch, 6/8-bit) , 40 Pins Connector | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | 10.1 Inch Automotive TFT Displays,40 pins Automotive TFT Displays,TM101DDHG01 |
||

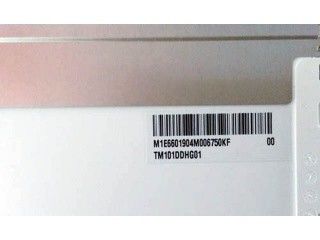

10.1 Inch Automotive Display Panel TM101DDHG01 With LED Driver
1. Main Information:
TM101DDHG01 is a 10.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, With LED Driver, 6/8 bit, Matte . Based on its features,this model be applied to Industrial, Automotive Display etc.
2. TIANMA TM101DDHG01 Mechanical Details:
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.0725×0.2088 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2175×0.2088 (H×V) [117PPI] | |
| Mechanical Size : | Active Area(mm) | 222.72(H) × 125.28(V) | Bezel Area(mm) | 225.52(H) × 128.10(V) |
| Outline Dim.(mm) | 235(H) × 143(V) | Depth(mm) | 4.9/5.4 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 202g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3. TIANMA TM101DDHG01 Optical Details:
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 7/9 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM101DDHG01 Interface Details:
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 220mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-12R | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C8B-020C | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
