Product Details:
|
| Size: | 3.5 Inch | Resolution: | 320×240 |
|---|---|---|---|
| Brightness: | 300 | C/R: | 300:1 |
| View Angle: | 60/60/50/55 | Colors: | 16.7M |
| Backlight: | WLED | Interface: | Serial RGB |
| Warranty: | 180 Days | Lead Time: | Stock,One Day |
| High Light: | A035QN05 V1,3.5 Inch FPC LCD display,Printer FPC LCD display |
||

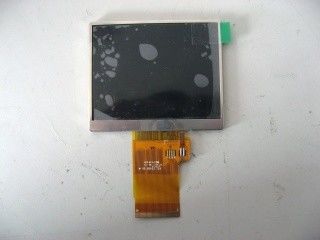

3.5 Inch Printer Panel TFT-LCD A035QN05 V1 2 In 1 FPC Without Touch Panel
1. Main Information:

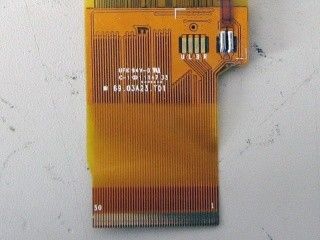

A035QN05 V1 (Alias: A035QN05 V.1) is a 3.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are following: WLED Backlight, U/D,L/R Reverse , 2 in 1 FPC, down side FPC (49.85mm length). This model be applied to Handheld & PDA, Printer etc.
2. AUO A035QN05 V1 Mechanical Details:
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.07325×0.21975 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.21975×0.21975 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.32×52.74 mm (H×V) | Bezel Area | 73.0×55.35 mm (H×V) |
| Outline Dim. | 76.9×63.9 mm (H×V) | Outline Depth | 2.92±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Other Features : | Weight | 30.8g | Surface | Hard coating |
3. AUO A035QN05 V1 Optical Details:
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.318; Wy:0.324 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6255K | White Uniformity | - |
4.AUO A035QN05 V1 Backlight Details:
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2/21V (Typ./Max.) | Current Input | 20/22mA (Typ./Max.) | ||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Panel Model | Size | Type | Resolution | Cd/m2 | C/R | Backlight | Color | Interface |
| A035QN05 V0 | 3.5" | LCM | 320×240 | 250 | 300:1 | WLED | 16.7M | Serial RGB |
| A035QN05 V1 | 3.5" | LCM | 320×240 | 300 | 300:1 | WLED | 16.7M | Serial RGB |
| A035QN05 V2 | 3.5" | LCM | 320×240 | 250 | 300:1 | WLED | 16.7M | Serial RGB |
| A035QN05 V4 | 3.5" | LCM | 320×240 | 500 | 300:1 | WLED | 16.7M | Serial RGB |
6.FAQ:
