Product Details:
|
| Size: | 8.5 Inch | Resolution: | 800*480 |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) |
| Color Depth: | 262K 50% NTSC | Signal Type: | CMOS (1 Ch, 6-bit) , Connector 40 Pins |
| Treatment: | Antiglare, Hard Coating (3H) | Work Mode: | TN, Normally White, Transmissive |
| Backlight: | WLED , 50K Hours , With LED Driver | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | G085VW01 V0,6 bit TFT LCD Panel,8.5 Inch TFT LCD Panel |
||

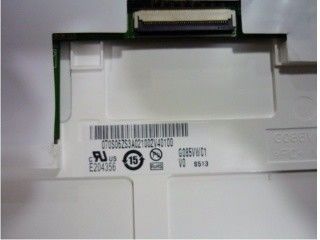

8.5 Inch Wide Temperature TFT LCD Panel G085VW01 V0 With LED Driver
1. Main Information:
The G085VW01 V0 (Alias: G085VW01 V.0) is a 8.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. With an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, Matte , Mass production from Jun. 2010. Based on its features,this model be applied to Industrial etc.
2. AUO G085VW01 V0 Optical Features:
| Basic Information | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 80/80/80/60 (Typ.)(CR≥10) | 20/10 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
3.AUO G085VW01 V0 Mechanical Features:
| Panel Size | 8.5 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.231×0.231 [109PPI] | 0.077×0.231 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 184.8(H) × 110.88(V) | 189.8(H) × 116.0(V) | 210(H) × 134(V) | 10.0±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | - | |
| Mounting : | Rear mounting holes (4-Φ1.6) | |||
| Other Detail | Weight | Panel Cover | Treatment | |
| 250g (Typ.) | - | Antiglare, Hard coating (3H) | ||
4.AUO G085VW01 V0 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | Replaceable | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | 3808K-F05N-02R |
1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 0.25A (Typ.) | 3W (Typ.) | ||||
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
