Product Details:
|
| Size: | 10.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) |
| Color Depth: | 262K/16.2M 45% NTSC | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Work Mode: | TN, Normally White, Transmissive | Backlight: | 7S2P WLED , 50K Hours , With LED Driver |
| Signal Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Max. Ratings: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Highlight: | G104SN02 V2,10.4 Inch AUO TFT Display,20 pins AUO TFT Display |
||
10.4 Inch Wide Temperature TFT LCD G104SN02 V2 With LED Driver For Industrial
1. Main Information:

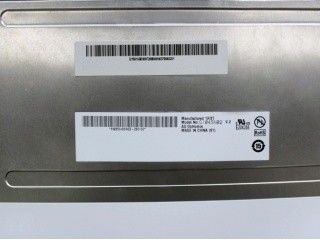

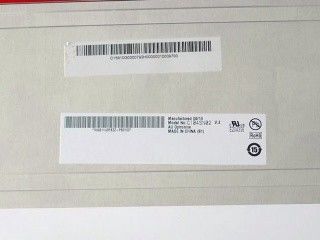

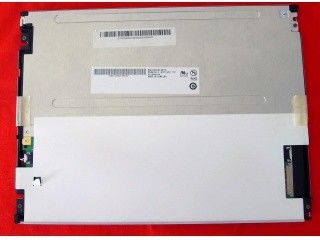

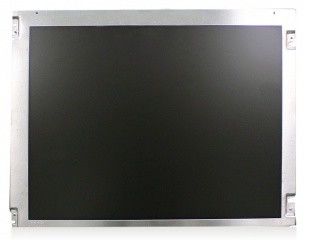

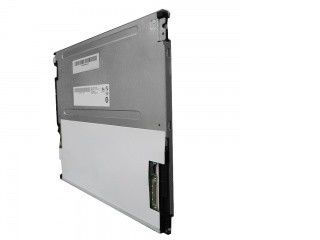

G104SN02 V2 (Alias: G104SN02 V.2) is a 10.4" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte , Mass production from Apr. 2009.
Based on its features,this model be applied to Industrial etc.
2. AUO G104SN02 V2 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.8(H) × 162.7(V) |
| Outline Dim.(mm) | 243(H) × 184(V) | Depth(mm) | 8.0/8.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec | Weight | 360g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3. AUO G104SN02 V2 Optical Details:
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 20/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 42% | sRGB | 59% coverage |
| Adobe RGB | 44% coverage | DCI-P3 | 44% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G104SN02 V2 Backlight Details:
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 7S2P | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical | Voltage Supply | 22.4/25.55V (Typ./Max.) | Current Supply | 80mA (Typ.) | ||
| Consumption | 3.6W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-02R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.32A (Typ.) | ||
| Consumption | 3.8W (Typ.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
