Product Details:
|
| Size: | 15 Inch | Resolution: | 1024*768 |
|---|---|---|---|
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Color Depth: | 262K/16.2M 60% NTSC | Signal Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Backlight: | 2 Pcs CCFL , 30K Hours , No Driver | Touchscreen: | Without |
| Work Mode: | TN, Normally White, Transmissive | Max. Ratings: | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
| High Light: | G150XG03 V3,1024*768 TFT Display Panel,15 Inch TFT Display Panel |
||
15 Inch 1024*768 TFT LCD G150XG03 V3 PSWG Compatible 180° Reverse For Industrial
1. Main Information:

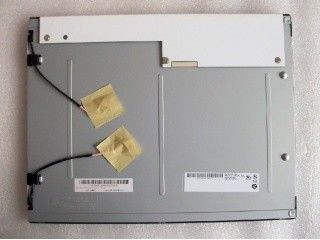

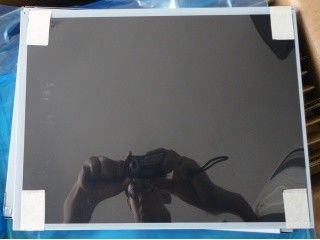

AU Optronics Corp.G150XG03 V3 (Alias: G150XG03 V.3) is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are following: Lamp Repaceable, 180° Reverse, 6/8 bit, Matte , PSWG Compatible.
Based on its features,this model be applied to Industrial etc.
2. AUO G150XG03 V3 Mechanical Details:
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 313.55×237.25 mm (H×V) |
| Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 12.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.10Kgs (Max.) | Surface | Antiglare, Hard coating (3H) |
3. AUO G150XG03 V3 Optical Details:
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 87% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G150XG03 V3 Backlight Details:
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 600±60V | Current Input | 3.5/8.0/8.5mA (Min./Typ./Max.) | ||
| Frequency | 40/55/60KHz (Min./Typ./Max.) | Kick-off Voltage | 1030/1290V (Max.)(Ta=+25/0°) | |||
| Consumption | 9.52/10.47W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
5. FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
