Product Details:
|
| Size: | 15 Inch | Resolution: | 1024*768 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| Support Color: | 16.2M 60% NTSC | Interface Type: | EDP (1 Lane) , EDP1.2 , 30 Pins Connector |
| Operating Mode: | TN, Normally White, Transmissive | Light Source: | WLED , 70K Hours , With LED Driver |
| Touch Panel: | On-Cell Touch | EDP (1 Lane) , EDP1.2 , 30 Pins Connector: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| High Light: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
1.Main Information:

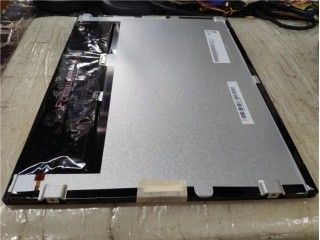

The G150XTK01.1 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. with an integral WLED backlight system, With LED Driver , touchscreen On-Cell Touch.
It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, Matte , eDP1.2.
Based on its features,this model be applied to Industrial etc.
2.AUO G150XTK01.1 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 80/80/70/80 (Typ.)(CR≥10) | 5.7/2.3 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.2M (6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 64% | 85% | 66% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 66% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
3.AUO G150XTK01.1 Mechanical Features:
| Panel Size | 15 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.297×0.297 [85PPI] | 0.099×0.297 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304.128(H) × 228.096(V) | 307.4(H) × 231.3(V) | 326.5(H) × 253.5(V) | 9.5±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| With touch controller | 5 points | USB | On-Cell Touch | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Antiglare | ||
4.AUO G150XTK01.1 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | No | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±1.2V | 0.45A (Typ.) | 5.4W (Typ.) | ||||
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
