Product Details:
|
| Size: | 15 Inch | Resolution: | 1024*768 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| Support Color: | 262K/16.2M 60% NTSC | Weight: | 1.20Kgs (Max.) |
| Operating Mode: | TN, Normally White, Transmissive | Light Source: | WLED , 50K Hours , With LED Driver |
| Interface Type: | LVDS (1 Ch, 6/8-bit) 20 Pins Connector | Environment: | Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C |
| Highlight: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
1.Main Information:

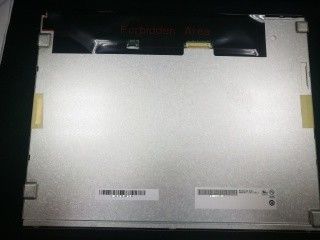

AU Optronics Corp.G150XTN03.5 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are ollowing: WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte , eDP1.2.
Based on its features, this model be applied to Industrial etc.
2.AUO G150XTN03.5 Optical Details:
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G150XTN03.5 Mechanical Details:
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 313.55(W)×237.25(H) mm | Overall Depth | 10.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.20Kgs (Max.) | Surface | Antiglare, Hard coating (3H) |
4.AUO G150XTN03.5 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | No | Amount | - | Life | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.375A (Typ.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 4.5/5W (Typ./Max.) | |||||
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
