G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)

G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)
G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10) G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10) G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10) G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10) G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)

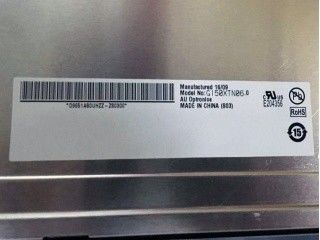

Large Image :  G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)

Product Details:
Place of Origin: TAIWAN
Brand Name: AUO
Certification: ISO9001
Model Number: G150XTN06.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 70USD
Packaging Details: Package Carton :15 pcs / box 18.5 Kgs (Max.) Carton Size :434×380×353 mm (L×W×H)
Delivery Time: 1 DAY
Payment Terms: T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability: 1000PCS

G150XTN06.0 15 Inch 1024*768 20 Pins AUO TFT LCD 80/80/70/80 (Typ.)(CR≥10)

Description
Size: 15 Inch Resolution: 1024*768
Brightness: 450 Cd/m² (Typ.) Viewing Angle: 80/80/70/80 (Typ.)(CR≥10)
Display Colors: 262K/16.2M 60% NTSC Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Lamp Type: WLED , 70K Hours , With LED Driver Touch Screen: Without
Contrast Ratio: 800:1 (Typ.) (TM) Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
Highlight:

G150XTN06.0

,

20 pins AUO TFT LCD

,

1024*768 AUO TFT LCD

15 Inch 1024*768 G150XTN06.0 20 pins Connector 70K Hours With LED Driver

1. Main Information:
   AU Optronics Corp.G150XTN06.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
   It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
  It's general features are ollowing: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 6/8 bit, Matte .
  Based on its features,this model be applied to Industrial etc.

2. AUO G150XTN06.0 Mechanical Details:
Pixel Features : Pixel Format 1024(RGB)×768 [XGA] Dot Pitch 0.099×0.297 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size : Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V)
Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 12.0±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style -
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Other Features : Weight 1.00Kgs (Max.) Surface Antiglare, Hard coating (3H)



3.AUO G150XTN06.0 Optical Details:

Basic Information : Brightness 450 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 5.7/2.3 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.311; Wy:0.322 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6658K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 64% sRGB 85% coverage
Adobe RGB 66% coverage DCI-P3 66% coverage
Rec.2020 47% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



4.AUO G150XTN06.0 Backlight Details:

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 70K(Typ.) (Hours)
Replacement Replaceable Amount - Position Edge light type (Bottom side)
Interface Features : Type Connector Position - Lamp Driver With LED Driver
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
E&T 3808K-F05N-12R 1.25 mm 5 pins 1 pcs
Driver Electrical : Voltage Input 12.0±1.2V Current Input 0.75A (Typ.)
Consumption 9.0W (Typ.)



5.FAQ:

Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.



Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
