Product Details:
|
| Size: | 19 Inch | Resolution: | 1280*1024 |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | View Direction: | Symmetry |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Support Color: | 16.7M 72% NTSC |
| Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Operating Mode: | AHVA, Normally Black, Transmissive |
| Light Source: | WLED [9S6P] , 50K Hours , With LED Driver | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
1. Main Information:

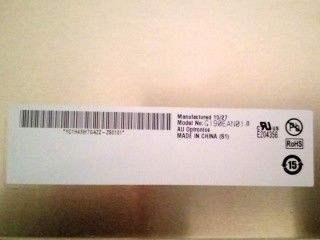

The G190EAN01.0 (Alias: 97.19G02.001) is a 19.0 inch diagonal with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features, this model be applied to Industrial, Medical Imaging etc.
2. AUO G190EAN01.0 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. AUO G190EAN01.0 Mechanical Details:
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing | 376.32(W)×301.056(H) mm | Overall Dim. | 396(W)×324(H) mm |
| Bezel Opening | 380.32(W)×305.06(H) mm | Overall Depth | 9.0/17.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | - | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.55Kgs (Typ.) | Surface |
Antiglare |
4. AUO G190EAN01.0 Lightting Details:
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 9S6P | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80mA (Typ.) | Input Voltage | 28.75V (Typ.) | ||
| Consumption | 13.8/15.6W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MS24019RHD | 1 pcs | 1.25 mm | 9 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 1.2A (Typ.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 14.4/15.8W (Typ./Max.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
