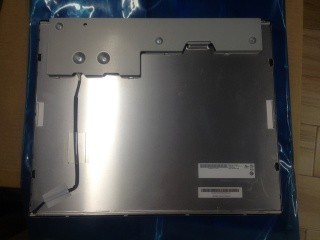

Product Details:
|
| Size: | 19 Inch | Resolution: | 1280*1024 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Support Color: | 16.7M 72% NTSC | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Operating Mode: | TN, Normally White, Transmissive | Light Source: | WLED , 50K Hours , With LED Driver |
| Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) [86PPI] | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.32(H) × 305.06(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 18.3 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.67Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3. AUO G190EG01 V1 Optical Details:
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 3.6/1.4 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G190EG01 V1 Backlight Details:
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | Current Supply | 80mA (Typ.) | |||
| Consumption | 12/14.4W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MS24019RHD | 1 pcs | 9 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.15/1.25A (Typ./Max.) | ||
| Consumption | 13.8/15W (Typ./Max.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
