Product Details:
|
| Size: | 19 Inch | Resolution: | 1280*1024 |
|---|---|---|---|
| Luminance: | 1600 Cd/m² (Typ.) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Support Color: | 16.7M 70% NTSC | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
| Light Source: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
1. Main Information:

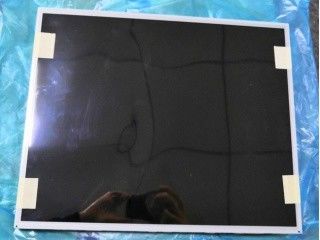

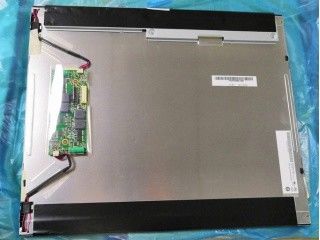

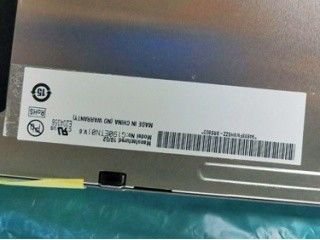

G190ETN01.6 is a 19.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F . Based on its features,this model be applied to Industrial, Outdoor High Brightness etc.
2. AUO G190ETN01.6 Mechanical Features:
| Panel Size : | 19 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 376.32×301.056 mm | - | 396×324 mm | 16.43/26.69 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 5:4 (W : H) | Landscape type | - | |
| Fixation : | Side mounting holes (4-M4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.12Kgs (Typ.) | Hard coating (2H), Antireflection | ||
3. AUO G190ETN01.6 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1600 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/80/80 (Typ.)(CR≥10) | - | 10 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
4. AUO G190ETN01.6 Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| CviLux | CI0110M1HR0-LF | 1 pcs | 2.0 mm | 10 pins | ||
| Driver Electrical | Current Input | Voltage Input | Consumption | |||
| - | 5.0/12.0/21.0V (Min./Typ./Max.) | 40/44W (Typ.) | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
