Product Details:
|
| Size: | 24 Inch | Resolution: | 1920*1200 |
|---|---|---|---|
| Luminance: | 900 Cd/m² (Typ.) | View Direction: | Symmetry |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Support Color: | 1.07B 72% NTSC |
| Operating Mode: | AHVA, Normally Black, Transmissive | Light Source: | WLED , 50K Hours , With LED Driver |
| Interface Type: | LVDS (2 Ch, 10-bit) 51 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED AUO TFT LCD,Transmissive AUO TFT LCD,TN AUO TFT LCD |
||
1. Main Information:

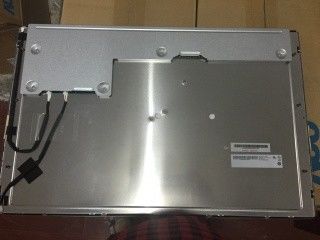

The G240UAN01.0 is a 24.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: sRGB, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 10 bit, Matte . Based on its features,this model be applied to Industrial, Medical Imaging, Outdoor High Brightness etc.
2. AUO G240UAN01.0 Optical Details:
| Basic Information : | Luminance | 900 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 78% | sRGB | 98% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
3. AUO G240UAN01.0 Mechanical Details:
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 518.4(W)×324(H) mm | Overall Dim. | 546.4(W)×352(H) mm |
| Bezel Opening | 521.4(W)×327.0(H) mm | Overall Depth | 18.6 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | - | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.50Kgs (Typ.) | Surface | Antiglare |
4. AUO G240UAN01.0 Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 65mA (Typ.) | Input Voltage | 37.2/40.8V (Typ./Max.) | ||
| Consumption | 33.86/37.12W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | S14B-PH-SM6-K-TB | 1 pcs | 2.0 mm | 14 pins | ||
| Backlight Driver | With LED Driver | |||||
| Driver Electrical | Input Current | 1.68/2.02A (Typ./Max.) | Input Voltage | 24.0±1.2V | ||
| Consumption | 40.33/41.16W (Typ./Max.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
