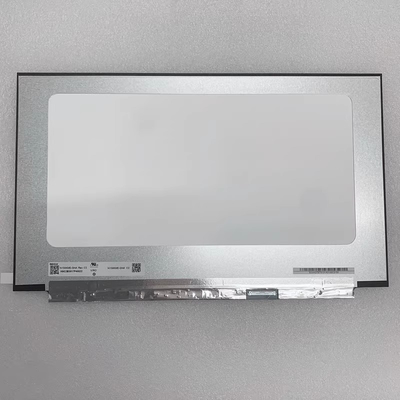

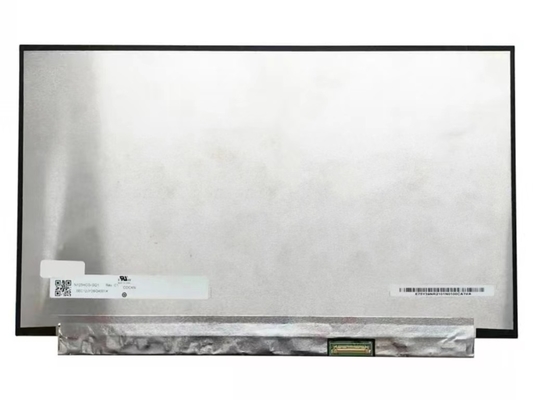

Product Details:
|
| Brand: | Sharp | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 188PPI | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Active Area: | 344.22(W)×193.62(H) Mm | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Info : | Panel Brand | Panel Model | LQ156T1JW04 | |
|---|---|---|---|---|
| Diagonal Size | 15.6" | Application |
|
|
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | SHP153C | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 2560(RGB)×1440 [Quad-HD] | Dot Pitch | 0.04482×0.13446 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.13446×0.13446 mm (H×V) [188PPI] | |
| Mechanical Size : | Display Area | 344.22×193.62 mm (H×V) | Bezel Area | - |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Other Features : | Weight | - | Surface | Hard coating (3H) |
| Basic Information : | Brightness | - | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | - | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | |||
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | ||||
| Frame Frequency : | 240Hz |
|---|---|
| Reverse Scan : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.22(W)×193.62(H) mm, with surface treament of Hard coating (3H), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ156T1JW04 can provides 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ156T1JW04 utilizes eDP (4 Lanes) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.).
