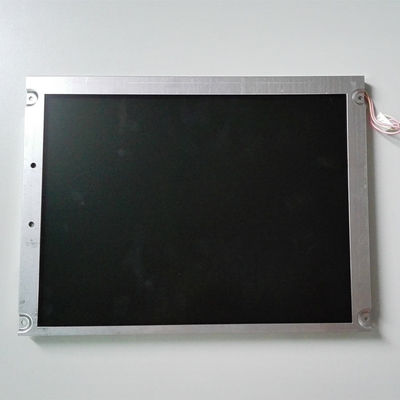

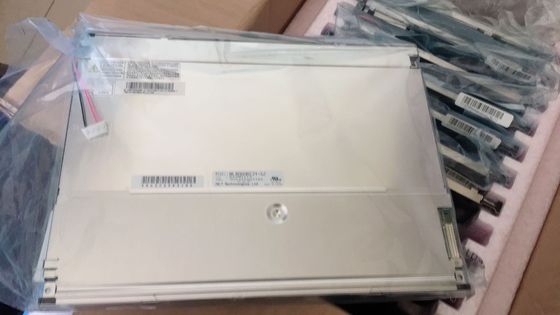

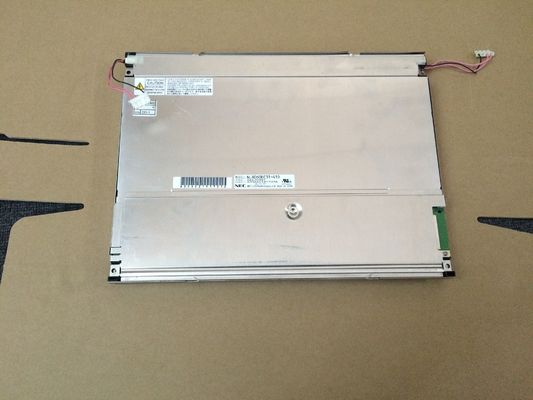

Product Details:
|
| MODEL NUMBER: | NL8060BC31-42D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | NEC TFT Display 40% NTSC,XGA 85PPI NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | NL8060BC31-42D | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 12.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 6/19 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1025×0.3075 mm | Pixel Pitch(W×H) | 0.3075×0.3075 mm [82PPI] | |
| Physical Size : | Active Viewing | 246(W)×184.5(H) mm | Overall Dim. | 280(W)×210(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm | Overall Depth | 11.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Detail : | Mass | 670/700g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.9W (Typ.) |
| Signal Electrical : | Input Current | 400/250mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VDL≤0.3VCC; 0.7VCC≤VDH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9C-41P-1V | 1 pcs | 1.0 mm | 41 pins | DRGB-41P1C6B-010G | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (121LHS22) | Amount | 2 pcs | Life | - | |
| Lamp Electrical : | Input Current | 2.0/5.0/5.5mA (Min./Typ./Max.) | Input Voltage | 560V (Typ.) | ||
| Frequency | 58/63/68KHz (Min./Typ./Max.) | Turn-on Voltage | 1380/1560V (Min.)(Ta=+25/-20℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-04VS-1 | 1 pcs | 4.0 mm | 4 pins | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 280(W)×210(H)×11.5(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 670/700g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, NL8060BC31-42D can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. NL8060BC31-42D utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 41 pins Connector with power supply voltage of 3.3/5.0V
