Product Details:
|
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) |
| Display Colors: | 262K/16.7M 40% NTSC | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Contrast Ratio: | 900:1 (Typ.) (TM) | Lamp Type: | 3 Strings WLED , 70K Hours , Without Driver |
| Touch Screen: | Without | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | 800*600 TFT LCD Panel,450cd/m² TFT LCD Panel,NL8060BC31-47D |
||
1. Main Information:

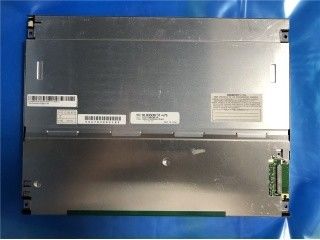

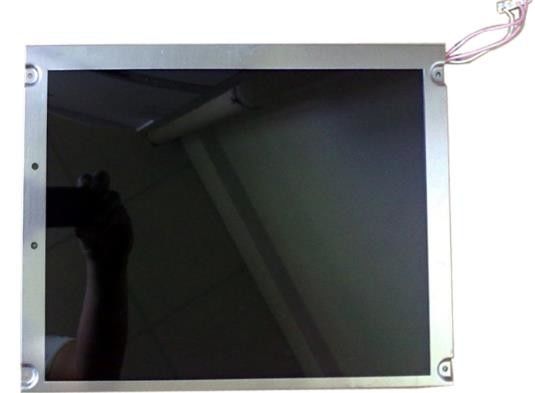

NEC LCD Technologies, Ltd. NL8060BC31-47D is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Industrial etc.
2. NEC NL8060BC31-47D Mechanical Details:
| Pixel Features | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 280(H) × 210(V) | Depth(mm) | 9.1±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 580/600g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3. NEC NL8060BC31-47D Optical Details:
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 3/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.NEC NL8060BC31-47D Backlight Details:
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (121LHS29) | Quantity | 3 strings | Life Time | 70K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 21.2/24.0/27.2V (Min./Typ./Max.) | Current Supply | 50/55mA (Typ./Max.) | ||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM08B-SRSS-TB | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ACACACNN | |
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
