Product Details:
|
| Screen Size: | 3.5 Inch | Pixel Number: | 240(RGB)×320 (QVGA) 113PPI |
|---|---|---|---|
| Active Area(mm): | 53.64 × 71.52 (H×V) | Mass: | 25.0/28.0g (Typ./Max.) |
| Signal Type: | CMOS (1 Ch, 6-bit) + SPI , 45 Pins FPC | Max. Ratings: | -20 ~ 70 °C |
| Screen Type: | LCM , A-Si TFT-LCD | Arrangement: | RGB Vertical Stripe |
| Outline(mm): | 63.5 × 85 × 3.2 (H×V×D) | Treatment: | Clear, Hard Coating (3H) |
| High Light: | LCD NEC TFT Display,Transmissive NEC TFT Display,A-Si NEC TFT Display |
||
1. Main Information:

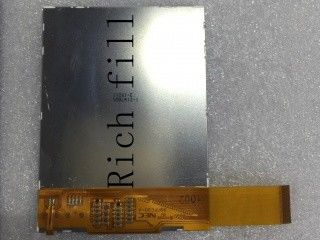

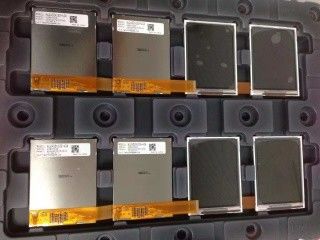

The NL2432HC22-40A is a 3.5 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Portrait type, Transflective, WLED Backlight , SR-NLT, left side 2 in 1 FPC (30mm). Based on its features, Panelook recommend that this model be applied to Handheld & PDA etc
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 220 (Typ.) | 35/35/35/35 (Typ.)(CR≥10) | 7/23 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transflective | 150 : 1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| White Variation : | 1.43/1.67 (Typ./Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | 10/15% (Min./Typ.) | |
| Panel Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×320 [QVGA] | RGB Vertical Stripe | 0.2235×0.2235 [113PPI] | 0.0745×0.2235 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 53.64(H) × 71.52(V) | - | 63.5(H) × 85(V) | 3.0±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | - | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.0V (Typ.) | 16.5/26.0mA (Typ./Max.)(ICC) | 50mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) + SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.3 mm | 45 pins | 1 pcs | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
