Product Details:
|
| Resolution: | 1024(RGB)×768 (XGA) 123PPI | Panel Type: | LCM, A-Si TFT-LCD |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s² |
| Diagonal Size: | 10.4" | Bezel Opening: | 215.4(W)×161.8(H) Mm |
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

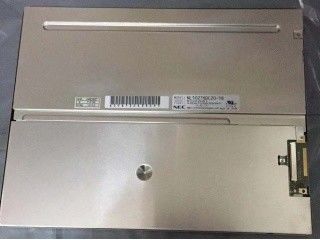

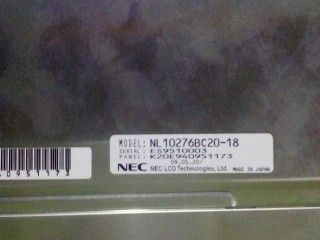

| Basic Info : | Panel Brand | Panel Model | NL10276BC20-18 | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0685×0.2055 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
| Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 228×178.5 mm (H×V) | Outline Depth | 8.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 380/400g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 38% | sRGB | 54% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.8W (Typ.) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS55) | Amount | 2 strings | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 24.3/27.8/31.4V (Min./Typ./Max.) | Current Input | 60/66mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | Optional |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM08B-SRSS-TB | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ACACNNNN | |
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 450/780mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-170A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 228(W)×178.5(H)×9.2(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 380/400g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, NL10276BC20-18 can provides 400 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 70K hours, , backlight driver is optional. NL10276BC20-18 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
