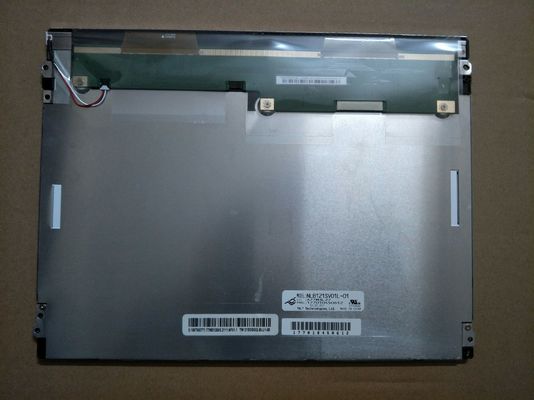

Product Details:
|
| Resolution: | 1024(RGB)×768 (XGA) 123PPI | Panel Type: | LCM, A-Si TFT-LCD |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Brightness: | 150cd/m² (Typ.) |
| Viewing Angle: | 45/45/40/20 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Bezel Opening: | 214.4(W)×161.8(H) Mm | ||
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.0685×0.2055 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2055×0.2055 (H×V) [123PPI] | |
| Mechanical Size : | Active Area(mm) | 210.4(H) × 157.8(V) | Bezel Area(mm) | 214.4(H) × 161.8(V) |
| Outline Dim.(mm) | 231.2(H) × 174.6(V) | Depth(mm) | 5.3±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | No mounting hole | |||
| Other Spec : | Weight | 160/170g (Typ./Max.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/40/20 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 3/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 53% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Shape | 5 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (104LHS53) | Quantity | - | Life Time | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 27.9/31.5V (Typ./Max.) | Current Supply | 15/15.4mA (Typ./Max.) | ||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM10B-SRSS-TB | 1 pcs | 10 pins | 1.0 mm | BLE-10PINS-ACACACACAC | |
| Backlight Driver : | No | |||||
| Basic Detail : | Manufacturer | Model Name | NL10276BC20-12 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 3.4W (Typ.) |
| Lamp Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (104LHS53) | Amount | - | Life | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 15/15.4mA (Typ./Max.) | Input Voltage | 27.9/31.5V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM10B-SRSS-TB | 1 pcs | 1.0 mm | 10 pins | BLE-10PINS-ACACACACAC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 231.2(W)×174.6(H)×5.8(D) mm, viewing area size of 214.4(W)×161.8(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 160/170g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, NL10276BC20-12 can provides 150 cd/m² display brightness 400:1 transimissive contrast ratio, 45/45/40/20 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. NL10276BC20-12 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
