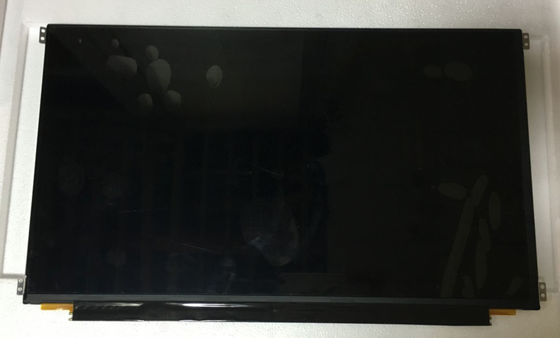

Product Details:
|
| Brand: | BOE | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 315PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NE140QUM-N61 | Oxide TFT-LCD , LCM | BOE08CE | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -20 ~ 65 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.), HDR400 | 89/89/89/89 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 97% | 100% | 89% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 100% | 72% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) | ||
| Panel Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.08055×0.08055 [315PPI] | 0.02685×0.08055 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 309.31(H) × 173.99(V) | - | 315.01(H) × 195.67(V) | 2.3 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 220g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10S8P | 8 strings | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 525mA (Max.) | 6.3W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 440/483mA (Typ./Max.) | 1.4/1.45W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes), eDP1.3, HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20525-040E-02 | 0.4 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.01(W)×195.67(H)×2.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 220g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE140QUM-N61 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE140QUM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
