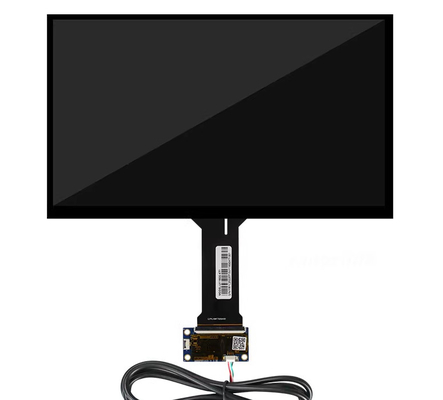

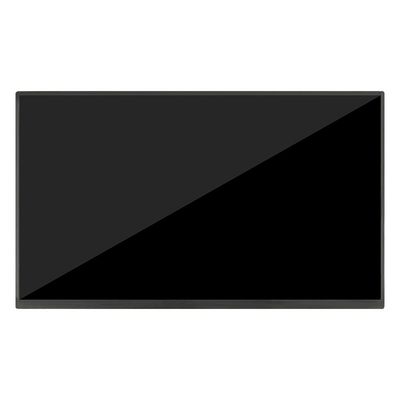

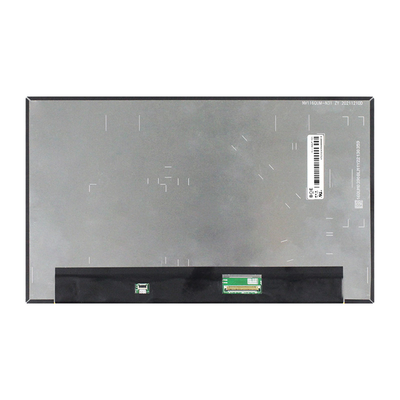

Product Details:
|
| Brand: | BOE | Diagonal Size: | 11.6" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 379PPI | Brightness: | 550 Cd/m² |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NV116QUM-N31 | a-Si TFT-LCD , LCM | BOE0971 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -15 ~ 60 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 550 (Typ.), HDR400 | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 5839K | 1.07B (8-bit + Hi-FRC) | X:0.325; Y:0.339 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 85% | 100% | 81% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 86% | 63% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(5 points) | ||
| Panel Size : | 11.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.0669×0.0669 [379PPI] | 0.0223×0.0669 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 256.896(H) × 144.504(V) | - | 265.9(H) × 158.2(V) | 3.0/4.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Bent, T≤3.0mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 206g (Typ.) | - | Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 11S6P | 6 strings | 9K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 9.0/12.0/21.0V (Min./Typ./Max.) | ||||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 455mA (Max.) | 1.5W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSAK24025P40G | 0.5 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 379 PPI. As for mechanical detail, it features active area of 256.896(W)×144.504(H) mm, outline size of 265.9(W)×158.2(H)×4.8(D) mm, with surface treament of Hard coating (3H), net weight of 206g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV116QUM-N31 can provides 550 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 9K hours, With LED Driver. NV116QUM-N31 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.
