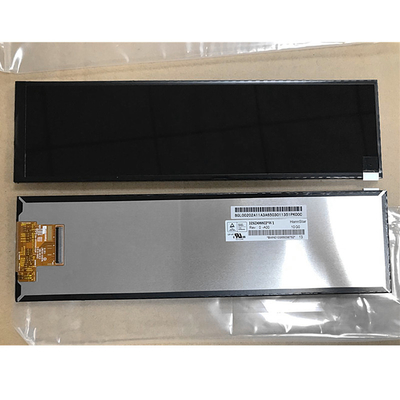

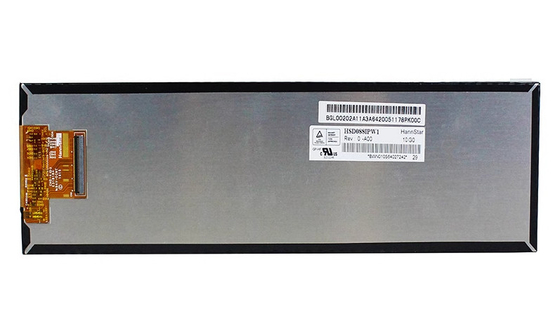

Product Details:
|
| Brand: | HannStar | Diagonal Size: | 8.8" |
|---|---|---|---|
| Resolution: | 1920×480(RGB) 222PPI | Luminance: | 600 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Basic Detail : | Manufacturer | Model Name | HSD088IPW1-A00 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.8 inch (Native bar) | Designed For |
|
|

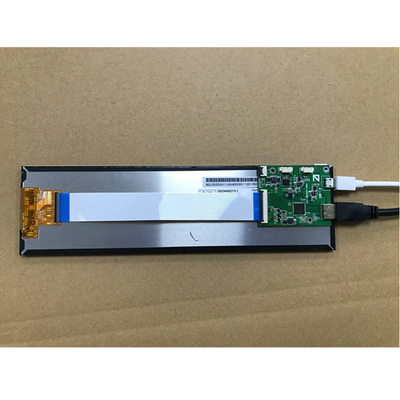

| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS Pro, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.322 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7320K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920×480(RGB) | Arrangement | RGB Horizontal Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.114×0.038 mm | Pixel Pitch(W×H) | 0.114×0.114 mm [222PPI] | |
| Physical Size : | Active Viewing | 218.88(W)×54.72(H) mm | Overall Dim. | 231.3(W)×64.3(H) mm |
| Bezel Opening | 221.9(W)×57.7(H) mm | Overall Depth | 4.8/6.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 100g (Typ.) | Surface | Hard coating |
| Signal Electrical : | Input Current | 35/30/5/5mA (Max.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.65W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH34SRJ-40S-0.5SH(50) | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 160mA (Typ.) | Input Voltage | 16/17.5V (Typ./Max.) | ||
| Consumption | 2.8W (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 218.88(W)×54.72(H) mm, outline size of 231.3(W)×64.3(H)×6.4(D) mm, viewing area size of 221.9(W)×57.7(H) mm, with surface treament of Hard coating, net weight of 100g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD088IPW1-A00 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD088IPW1-A00 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/12.0/20.0/-10.0V
