Product Details:
|
Luminance: | 450 Cd/m² (Typ.) | Interface Type: | MIPI (4 Data Lanes) 31 Pins Connector |
---|---|---|---|
Diagonal Size: | 7.0" | Environment: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
Resolution: | 1200(RGB)×1920, WUXGA 322PPI | Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) |
Weight: | 66.0g (Typ.) | Frame Rate: | 60Hz |
Model P/N: | LT070ME05000 |
Basic Info : | |
---|---|
Reliability : |
Pixel Features : | |
---|---|
Mechanical Size : | |
Outline Features : | |
Holes & Brackets : | |
Other Features : |
Basic Information : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Frame Frequency : | |
---|---|
Reverse Scan : |
Back-light Features : | |
---|---|
Interface Features : | |
Driver Electrical : |
Signal Systerm : | |
---|---|
Signal Electrical : | |
Interface Features : | |
Connector Detail : |

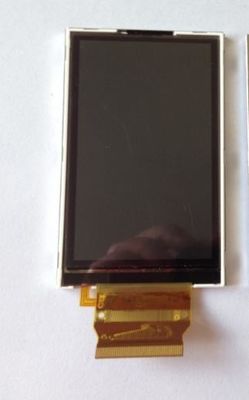

LTPS TFT-LCD display screen product from JDI, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Rev1.1 which was released out on 10 2 2014, LT070ME05000 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 322 PPI. As for mechanical detail, it features active area of 94.5(W)×151.2(H) mm, outline size of 98.7(W)×160.8(H)×3.67(D) mm, net weight of 66.0g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LT070ME05000 can provides 450 cd/m² display brightness 1100:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 5S4P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. LT070ME05000 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 1.8/3.0/3.0V
