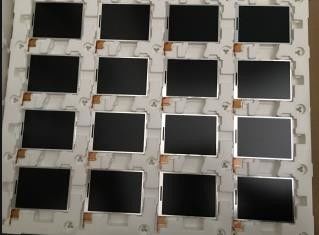

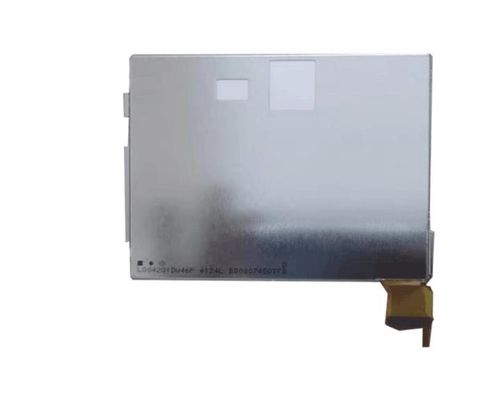

Product Details:
|
| Brand: | Sharp | Model: | LQ042Q1DW40P |
|---|---|---|---|
| Active Area: | 84.96(H)×63.72(V) Mm | Diagonal Size: | 4.2 Inch |
| Luminance: | 180 Cd/m² (Typ.) | Configuration: | RGB Vertical Stripe |
| Light Source: | WLED [6S1P] , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 8-bit) , 53 Pins FPC |
| Viewing Angle: | 80/80/80/80 (Typ.) | Environment: | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C |
| Highlight: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ042Q1DW40P | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 40 °C | -25 ~ 60 °C | - |
| Panel Size : | 4.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×320 [QVGA] | RGB Vertical Stripe | 0.2655×0.2655 [108PPI] | 0.0885×0.2655 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 84.96(H) × 63.72(V) | - | 96.8(H) × 71.5(V) | 2.75 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 39.0g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.0/-5.0/14.5/-14.5V (Typ.)(VSHD/VSHA/GVSS/VGH/VGL) | - | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VSHD; 0.7VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 53 pins | 1 pcs | |||||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 17V (Typ.) | 11.1mA (Typ.) | 19mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 4 pins | 1 pcs | BLE-4PINS-CCAA | ||||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 180 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 35/35 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7037K | 16.7M (8-bit) | X:0.305; Y:0.320 |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
