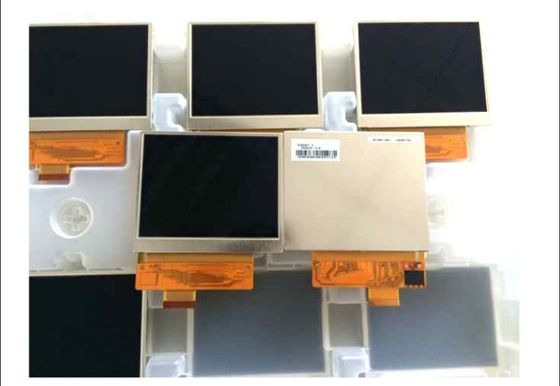

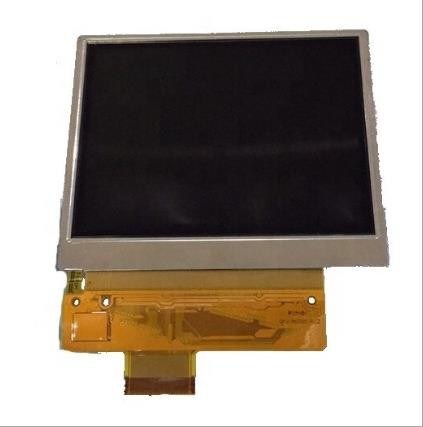

Product Details:
|
| Model Name: | LQ036Q1DA01 | Screen Size: | 3.6 Inch |
|---|---|---|---|
| Arrangement: | RGB Vertical Stripe | Luminance: | 280 Cd/m² (Typ.) |
| Outline(mm): | 82.8 × 69.7 (H×V×D) | Backlight: | 7S1P WLED , No Driver |
| Pixel Number: | 320(RGB)×240 (QVGA) 112PPI | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 3.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.076×0.227 mm | 0.227×0.227 mm [112PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 72.5×54.4 mm | 77.0×59.0 mm | 82.8×69.7 mm | 3.3 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 37.0g (Typ.) | Hard coating (3H) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 3.5/1.4/0.04/-0.04mA (Typ.)(ISHA/ISHD/IDD/IEE) | 5.0/3.3/15.0/-12.0V (Typ.)(VSHA/VSHD/VDD/VEE) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 51 pins | |||||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 280 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/50 (Typ.)(CR≥5) | 6 o'clock | 15/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 7S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 17/20mA (Typ./Max.) | 25.9/29.4V (Typ./Max.) | 440/588mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
LQ036Q1DA01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 72.5(W)×54.4(H) mm, outline size of 82.8(W)×69.7(H) mm, viewing area size of 77.0(W)×59.0(H) mm, with surface treament of Hard coating (3H), net weight of 37.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ036Q1DA01 can provides 280 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/50 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
