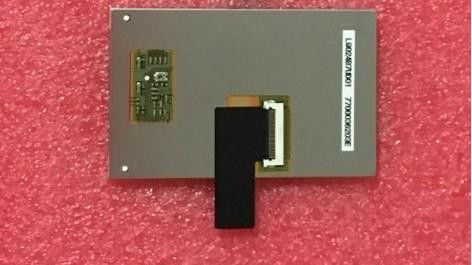

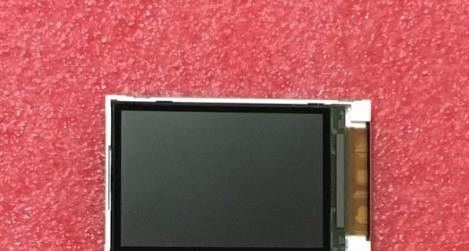

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ024B7UD01 |
|---|---|---|---|
| Luminance: | 28cd/m² | Pixel Number: | 160×240RGB |
| Arrangement: | RGB Vertical Stripe | Outline(mm): | 41.8 × 66.6 (H×V×D) |
| Backlight: | 2S1P WLED , No Driver | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Pixel Features : | Resolution | 160(RGB)×240, HQVGA | Dot Pitch(mm) | 0.070×0.210 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.210×0.210 (H×V) [120PPI] | |
| Mechanical Size : | Active Area(mm) | 33.6(H) × 50.4(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 41.8(H) × 66.6(V) | Depth(mm) | 3.45 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 2:3 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 18.0g | Treatment | Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 28 (Typ.) | Contrast Ratio | 110:1 (Typ.) (Transmissive) 12:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 50/50/60/50 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transflective | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.320; Y:0.340 | Display Colors | 65K |
| Color Temperature | 6066K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 8/12% (Min./Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | CPU | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 24 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 6.2/6.7V (Typ./Max.) | Current Supply | 15/18mA (Typ./Max.) | ||
| Consumption | 93/121mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ024B7UD01 supports display 160(RGB)×240 (HQVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 33.6(W)×50.4(H) mm, outline size of 41.8(W)×66.6(H) mm, with surface treament of Hard coating (3H), net weight of 18.0g. As a TN, Normally White, Transflective LCM product, LQ024B7UD01 can provides 28 cd/m² display brightness 110:1 transimissive contrast ratio, 12:1 (Typ.) reflective contrast ratio, 50/50/60/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms., thus presenting a palette of 65K colors. This product adopted 2S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
