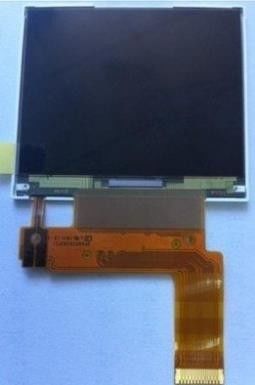

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LS020A8DX02 |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA, 204PPI | Brightness: | 400 Cd/m² (Typ.) |
| Panel Size: | 2.0INCH | Lamp Type: | 4S1P WLED , Without Driver |
| Signal Interface: | Serial RGB (8-bit) + SPI , 25 Pins FPC | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Brand | SHARP | Model | LS020A8DX02 |
|---|---|---|---|---|
| Type | LCM CG-Silicon | Used For | ||
| Screen Size | 2.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) 20:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | Mobile ASV, Normally Black, Transflective | |
| Best View on | Symmetry | Response(ms) | 25/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 3.0/4.0% (Min./Typ.) |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.0415×0.1245 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Delta | Pixel Pitch(mm) | - [204PPI] | |
| Mechanical Size : | Active Area(mm) | 39.82(H) × 29.88(V) | Bezel Area(mm) | 41.42(H) × 31.48(V) |
| Outline Dim.(mm) | 45.8(H) × 40.2(V) | Depth(mm) | 1.76±0.14 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 5.60g (Typ.) | Treatment | Hard coating (3H) |
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 12.8/14.0V (Typ./Max.) | Current Supply | 20/25mA (Typ./Max.) | ||
| Consumption | 256/350mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Signal Electrical : | Voltage Supply | 3.3V (Typ.)(VDD) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 33/46mW (Typ./Max.) | |||||
| Signal Type : | Serial RGB (8-bit) + SPI | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 25 pins | 0.3 mm | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
