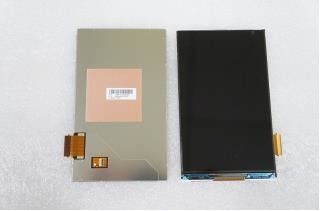

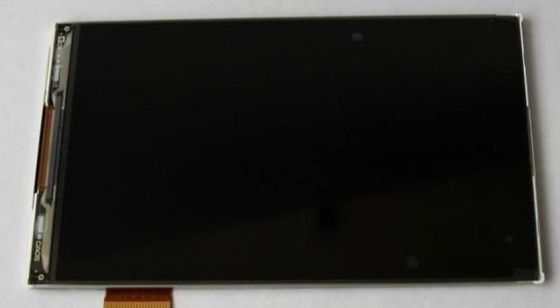

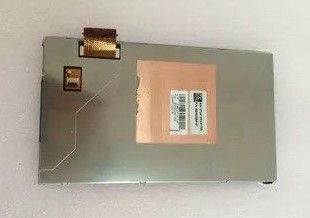

Product Details:
|
| Model Name: | LQ043Y1DX01 | Screen Size: | 4.3 Inch |
|---|---|---|---|
| Manufacturer: | Sharp | Arrangement: | RGB Vertical Stripe |
| Luminance: | 350 Cd/m² (Typ.) | Backlight: | 8S1P WLED , No Driver |
| Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | Pixel Number: | 480(RGB)×800 (WVGA) 217PPI |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Brand | Model 3 Compatible | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ043Y1DX01 | a-Si TFT-LCD , LCM | 60H00300-00P | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6737K | 65K | X:0.310; Y:0.320 |
| Panel Size : | 4.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×800, WVGA | RGB Vertical Stripe | 0.039×0.117 mm | 0.117×0.117 mm [217PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 56.16×93.6 mm | - | 62.46×105.9 mm | 2.2/2.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:5 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Hard coating (3H) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.0/2.6V (Typ.)(VCI/VDDIO) | 76mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.3 mm | 45 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 8S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 25.6V (Typ.) | 512mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
LQ043Y1DX01 supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×93.6(H) mm, outline size of 62.46(W)×105.9(H)×2.3(D) mm, with surface treament of Hard coating (3H), net weight of TBD. As a ASV, Normally Black, Transmissive LCM product, LQ043Y1DX01 can provides 350 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K colors, also with performance of color gamut 72% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
