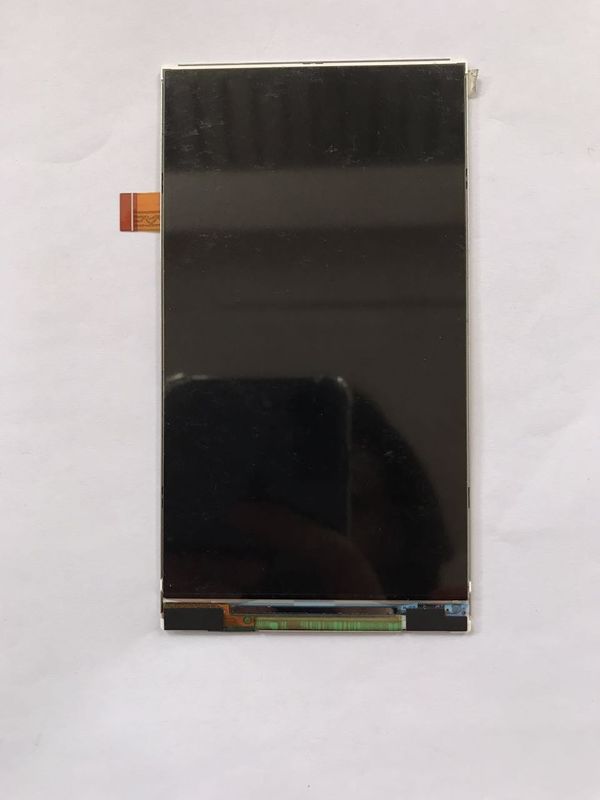

Product Details:
|
| Model Name: | LQ047K3SX08 | Manufacturer: | Sharp |
|---|---|---|---|
| Luminance: | 400cd/m² | Screen Size: | 4.7 Inch |
| Screen Type: | LCM , Oxide TFT-LCD | Arrangement: | RGB Vertical Stripe |
| Pixel Number: | 720(RGB)×1280 (WXGA) 314PPI | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| Highlight: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 4.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 720(RGB)×1280, WXGA | RGB Vertical Stripe | 0.0269×0.0807 mm | 0.0807×0.0807 mm [314PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 58.104×103.296 mm | - | 61.912×114.38 mm | 1.55/2.30 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 9:16 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 24.5g | - | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 10S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 30.0/33.0V (Typ./Max.) | 600mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 10/41mA (Typ.)(IDDIO/ICI) | 1.8/2.8V (Typ.)(VDDIO/VCI) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | MIPI (3 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment  |
| 1 pcs | 0.3 mm | 25 pins | ||||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6747K | 16.7M (8-bit) | X:0.308; Y:0.330 |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
