Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ101W3LG01 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Screen Type: | LCM , A-Si TFT-LCD |
| Screen Size: | 10.1 Inch | Pixel Number: | 1024(RGB)×600 (WSVGA) 117PPI |
| Backlight: | WLED , 70K Hours , With LED Driver | Max. Ratings: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| Highlight: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 16 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.307; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6813K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Pixel Format | 1024(RGB)×600 [WSVGA] | Dot Pitch | 0.0725×0.2088 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2175×0.2088 mm (H×V) [117PPI] | |
| Mechanical Size : | Display Area | 222.72×125.28 mm (H×V) | Bezel Area | 225.5×128.1 mm (H×V) |
| Outline Dim. | 235.3×143 mm (H×V) | Outline Depth | 5.8/8.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 350g (Max.) | Surface | Hard coating (3H) |
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 110/300mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH41-30S-0.5SH(05) | 0.5 mm | 30 pins | 1 pcs | ||
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 390/420mA (Typ./Max.) | ||

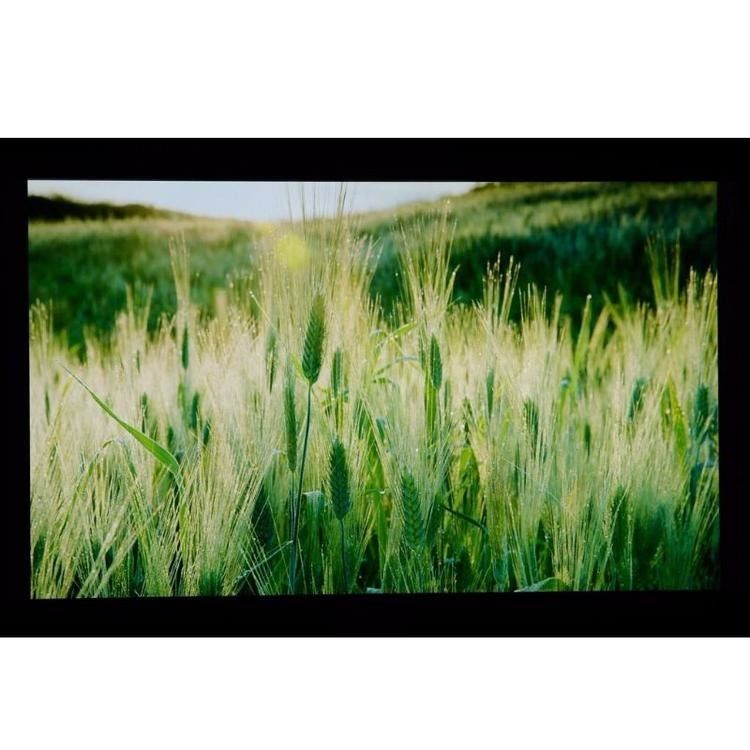

LQ101W3LG01 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235.3(W)×143(H)×8.1(D) mm, viewing area size of 225.5(W)×128.1(H) mm, with surface treament of Hard coating (3H), net weight of 350g (Max.). As a TN, Normally White, Transmissive LCM product, LQ101W3LG01 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
