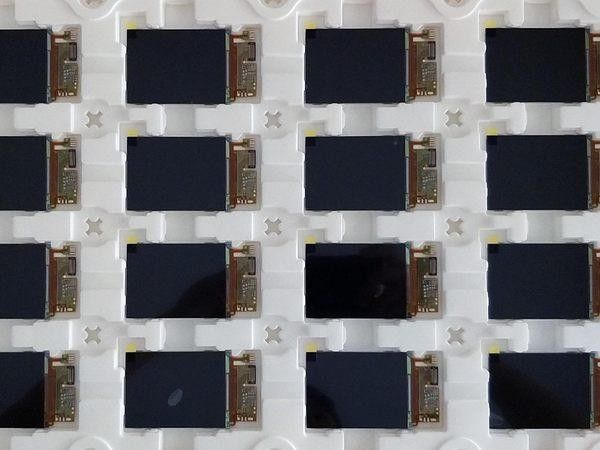

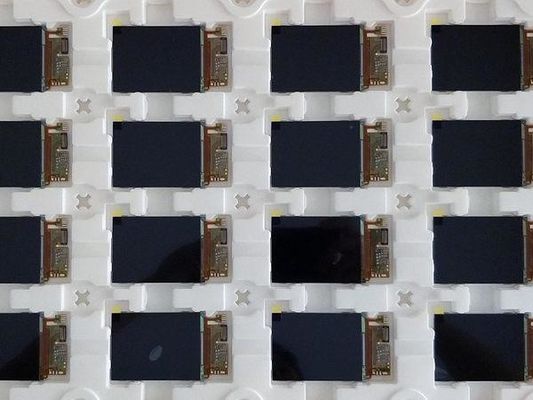

Product Details:
|
| Panel Model: | LS028V7DX01 | Panel Size: | 2.8" |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Resolution: | 480(RGB)×640, VGA, 289PPI |
| Panel Type: | CG-Silicon, LCM | Pixel Format: | RGB Vertical Stripe |
| Lamp Type: | 6S1P WLED , Without Driver | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) 13:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | Normally Black, Transflective | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.18/1.33 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 1.5% (Typ.) |
| Signal Electrical : | Input Current | 6.8/21mA (Typ.)(IDDD/IDDA) | Input Voltage | 1.8/2.85V (Typ.)(VDDD/VDDA) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AXT440124 | 1 pcs | 0.4 mm | 40 pins | ||
| Pixel Features : | Number of Pixel | 480(RGB)×640 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.02925×0.08775 mm | Pixel Pitch(W×H) | 0.08775×0.08775 mm [289PPI] | |
| Physical Size : | Active Viewing | 42.12(W)×56.16(H) mm | Overall Dim. | 45.9(W)×64.2(H) mm |
| Bezel Opening | - | Overall Depth | 1.7±0.15 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | ||
| Other Detail : | Mass | 11.0 (Typ.) | Surface | Hard coating (3H) |
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S1P | Life | - | |
| Lamp Electrical : | Input Current | 20/20mA (Typ./Max.) | Input Voltage | 19.2/21V (Typ./Max.) | ||
| Consumption | 384/420mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
