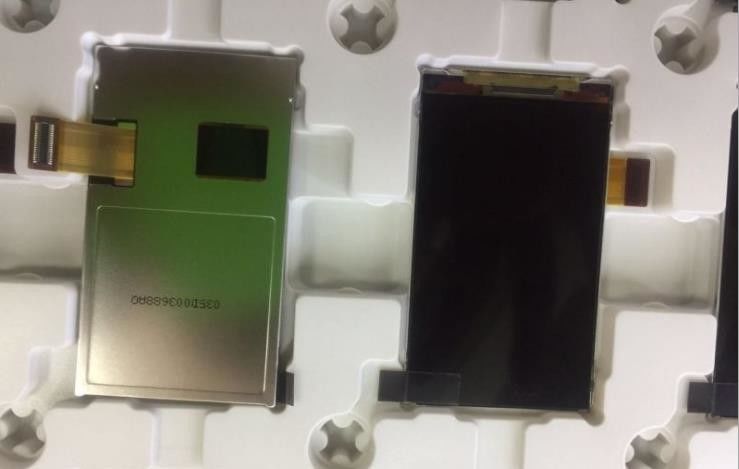

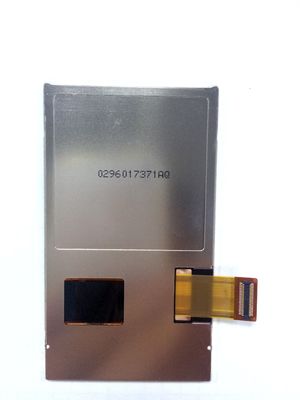

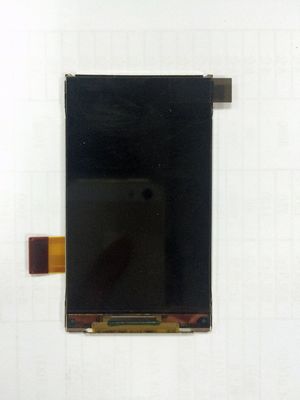

Product Details:
|
| Panel Size: | 3.0INCH | Panel Model: | LS030B3UW01 |
|---|---|---|---|
| Resolution: | 240(RGB)×400, WQVGA, 156PPI | Panel Type: | CG-Silicon , LCM |
| Brightness: | 500 Cd/m² (Typ.) | Lamp Type: | 1S6P WLED , Without Driver |
| Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | Viewing Angle: | 80/80/80/80 (Typ.) |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 3.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×400 [WQVGA] | RGB Vertical Stripe | 0.162×0.162 [156PPI] | 0.054×0.162 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 38.88(H) × 64.8(V) | 39.88(H) × 65.8(V) | 43.08(H) × 75.4(V) | 1.8 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 11.0g | - | - | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 80/80/80/80 (Typ.)(CR≥5) | 11/24 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | Normally Black, Transmissive | 2000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8022K | 262K (6-bit) | X:0.290; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 98% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 2.8V (Typ.)(VCC) | 4.0/5.2mA (Typ./Max.)(VCC) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | CPU | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GB042-40P-H10-E3000 | 0.4 mm | 40 pins | 1 pcs | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1S6P | Parallel | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 3.2V (Typ.) | 20mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
