Product Details:
|

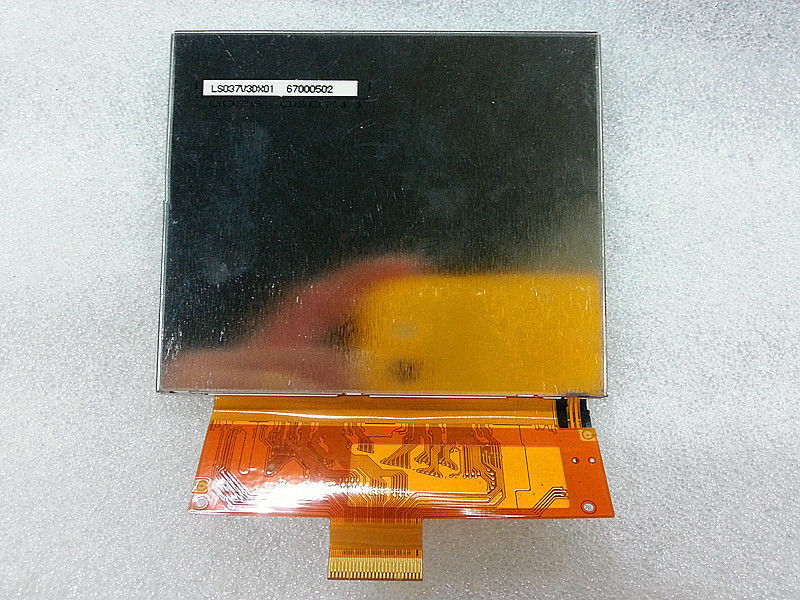

| Model: | LS037V3DX01 | Diagonal Size: | 3.7INCH |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Pixel Format: | 640(RGB)×480 [VGA] 217PPI |
| Light Source: | WLED | Type: | CG-Silicon, LCM |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) , 51 Pins FPC | Environment: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.310 | Support Color | 262K (6-bit) |
| Color Temperature | 8266K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.039×0.117 mm | Pixel Pitch(W×H) | 0.117×0.117 mm [217PPI] | |
| Physical Size : | Active Viewing | 74.88(W)×56.16(H) mm | Overall Dim. | 85(W)×71.8(H) mm |
| Bezel Opening | 78.5(W)×59.8(H) mm | Overall Depth | 3.6±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 46.0g (Typ.) | Surface | Hard coating (3H) |
| Signal Electrical : | Input Current | 12.0/11.5/1.2/1.2mA (Typ.)(ISHD/ISHA/IVDD/IVSSD) | Input Voltage | 5.0/3.3/9.8/-6.5V (Typ.)(VSHD/VSHA/VDD/GVSS) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 51 pins | ||||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Lamp Electrical : | Input Current | 18/20mA (Typ./Max.) | Input Voltage | 32/35V (Typ./Max.) | ||
| Consumption | 576/700mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
