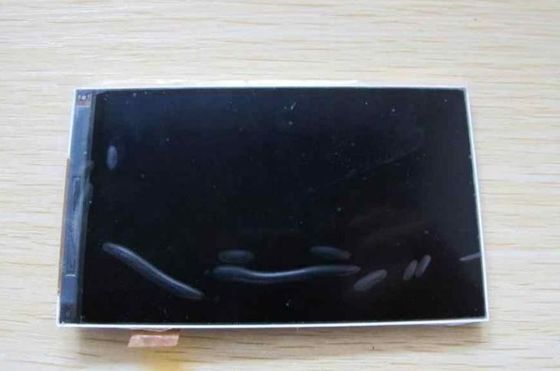

Product Details:
|
| Panel Model: | LS038Y7DX01 | Panel Size: | 3.8INCH |
|---|---|---|---|
| Brightness: | 300cd/m² | Panel Brand: | Sharp |
| Lamp Type: | 7S1P WLED , Without Driver | Resolution: | 480(RGB)×800, WVGA, 245PPI |
| Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | Signal Interface: | Parallel RGB (1 Ch, 6-bit) + SPI , 50 Pins FPC |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||

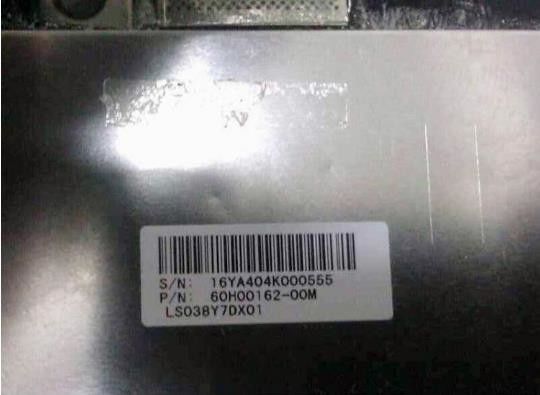

| Basic Detail : | Manufacturer | SHARP | Model Name | LS038Y7DX01 |
|---|---|---|---|---|
| Panel Type | CG-Silicon , LCM | Another Name | - | |
| Panel Size | 3.8 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Pixel Features : | Number of Pixel | 480(RGB)×800 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0345×0.1035 mm | Pixel Pitch(W×H) | 0.1035×0.1035 mm [245PPI] | |
| Physical Size : | Active Viewing | 49.68(W)×82.8(H) mm | Overall Dim. | 54.6(W)×93(H) mm |
| Bezel Opening | - | Overall Depth | 2.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:5 | Shape Style | ||
| Other Detail : | Mass | 20.0g (Typ.) | Surface | - |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) 12:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 40/40 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | Normally Black, Transflective | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 0.97/1.5% (Min./Typ.) |
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S1P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 22.4/24.5V (Typ./Max.) | ||
| Consumption | 448mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Signal Electrical : | Input Current | 3.1/3.8mA (Typ.)(IDC/IDDIO) | Input Voltage | 3.85/1.8V (Typ.)(VDC/VDDIO) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VDDIO; 0.8VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 50 pins | |||||
