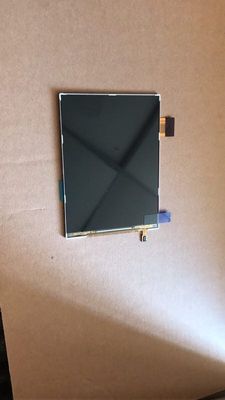

Product Details:
|

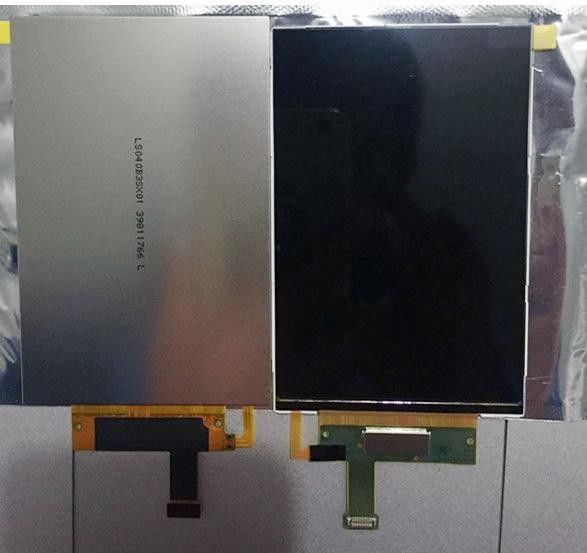

| Screen Size: | 4.0 Inch | Model Name: | LS040B3SX01 |
|---|---|---|---|
| Manufacturer: | Sharp | Luminance: | 450 Cd/m² (Typ.) |
| Screen Type: | LCM, CG-Silicon | Arrangement: | RGB Vertical Stripe |
| Pixel Number: | 640(RGB)×960 (DVGA) 291PPI | Max. Ratings: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 4.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×960, DVGA | RGB Vertical Stripe | 0.029×0.087 mm | 0.087×0.087 mm [291PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 55.68×83.52 mm | - | 59.8×91.85 mm | 1.6±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 2:3 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 19.0g | Clear | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 11/24 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6666K | 16.7M (8-bit) | X:0.310; Y:0.327 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 11.4/37.0mA (Typ./Max.) | 1.8/5.5V (Typ./Max.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | MIPI (2 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 502430-2410 | 1 pcs | 0.4 mm | 24 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 7S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 21.7V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
