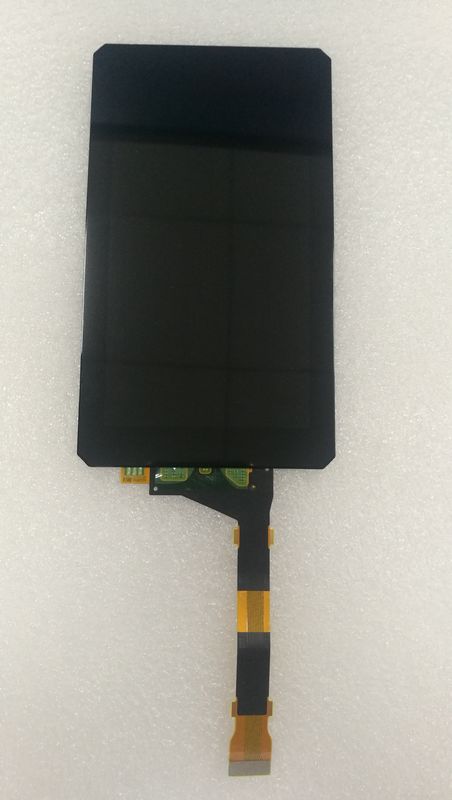

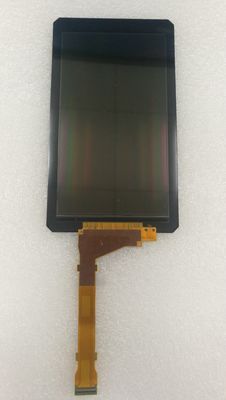

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LS052R1SX04 |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Panel Size: | 5.2INCH |
| Lamp Type: | 8S2P WLED , Without Driver | Resolution: | 1440(RGB)×2560, Quad-HD, 570PPI |
| Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | Signal Interface: | MIPI (2 Ch, 4 Data Lanes) , 50 Pins Connector |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 80/80/80/80 (Max.)(CR≥10) | 32 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | New Mode2, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8274K | 16.7M (8-bit) | X:0.294; Y:0.298 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 94% | 100% | 88% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 96% | 70% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 5.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1440(RGB)×2560 [Quad-HD] | RGB Vertical Stripe | 0.04455×0.04455 [570PPI] | 0.01485×0.04455 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 64.152(H) × 114.048(V) | - | 66.36(H) × 120.64(V) | 1.27±0.13 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 9:16 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 15.8g (Typ.) | - | - | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.6/-5.6V (Typ.)(VDDI/VSP/VSN) | - | 165/230mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (2 ch, 4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| Panasonic | AXG850044 | 0.35 mm | 50 pins | 1 pcs | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 8S2P | 2 strings | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20mA (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
