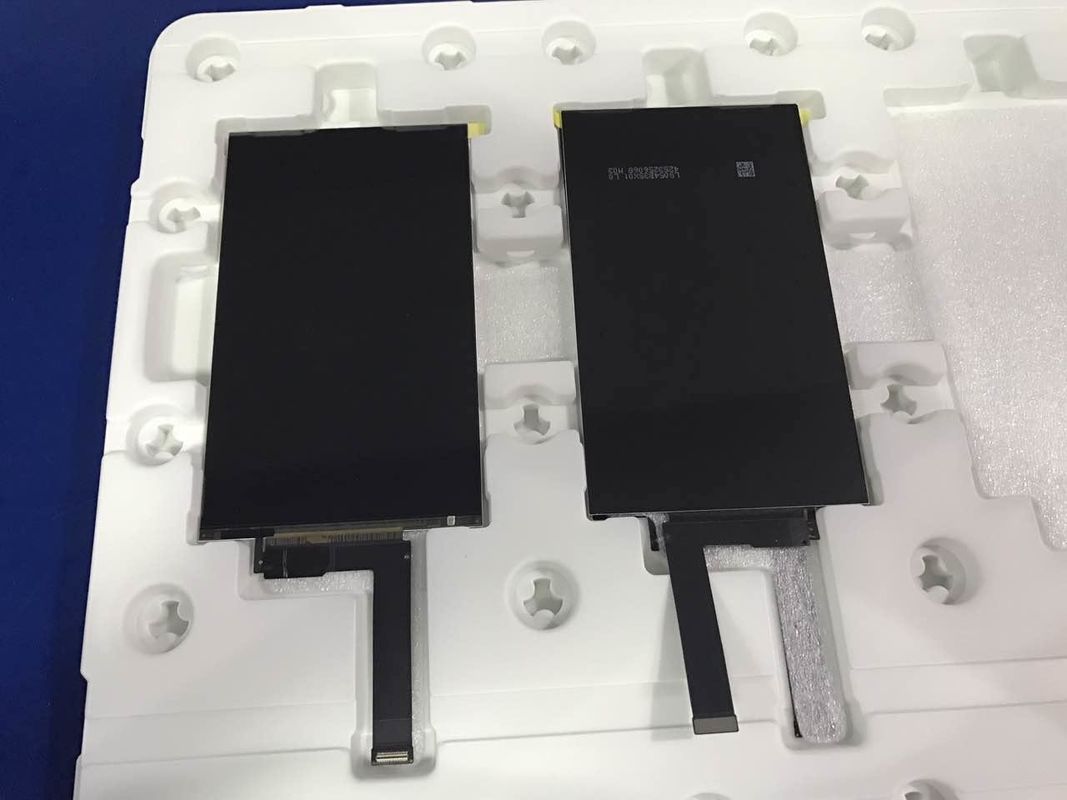

Product Details:
|
| Panel Model: | LS054B3SX01 | Panel Size: | 5.4" |
|---|---|---|---|
| Resolution: | 1152(RGB)×1920, 418PPI | Brightness: | 600 Cd/m² (Typ.) |
| Panel Type: | CG-Silicon, LCM | Signal Interface: | MIPI (4 Data Lanes) , 32 Pins Connector |
| Lamp Type: | 8S2P WLED , Without Driver | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Highlight: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LS054B3SX01 | CG-Silicon , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Panel Size : | 5.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1152(RGB)×1920 | RGB Vertical Stripe | 0.06075×0.06075 [418PPI] | 0.0205×0.06075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 69.984(H) × 116.64(V) | - | 72(H) × 123(V) | 1.30±0.1 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 18.5g (Typ.) | - | - | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 35 (Max.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | New Mode2, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6778K | 16.7M (8-bit) | X:0.308; Y:0.327 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 84% | 100% | 79% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 87% | 63% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.7/9.55/-5.7/-6.95V (Typ.)(IOVCC/VSP/VGH/VSN/VGL) | 32/16.7/2.1/15.8/2.1mA (Typ.)(IOICC/ISP/IGH/ISN/IGL) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | WP9-S032VA1 | 0.4 mm | 32 pins | 1 pcs | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 8S2P | 2 strings | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 23.12/24.72V (Typ./Max.) | 18mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
