Product Details:
|
| Model: | LK600D3LB08 | Luminance: | 450 Cd/m² (Typ.) |
|---|---|---|---|
| Diagonal Size: | 60 Inch | Pixel Format: | 1920(RGB)×1080 [FHD] 36PPI |
| Type: | A-Si TFT-LCD , LCM | Light Source: | WLED [4 Strings] , 40K Hours , W/O Driver |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | Interface Type: | V-by-One 8 Lane , 51 Pins Connector |
| Highlight: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.23075×0.69225 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.69225×0.69225 (H×V) [36PPI] | |
| Mechanical Size : | Active Area(mm) | 1329.12(H) × 747.63(V) | Bezel Area(mm) | 1338.1(H) × 756.6(V) |
| Outline Dim.(mm) | 1367(H) × 788.6(V) | Depth(mm) | 21.4 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 19.8±1.0Kgs | Treatment | Antiglare, Hard coating (2H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | ASV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 4 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.265; Y:0.263 | Display Colors | 1.07B (10-bit) |
| Color Temperature | 15507K | White Uniformity | 1.27 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 98% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.2/2.7A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | V-by-One 8 lane | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20519-051E | 1 pcs | 51 pins | 0.5 mm | ||

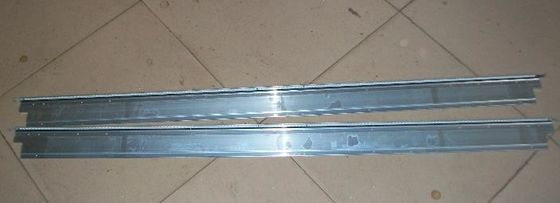

| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 strings | Life Time | 40K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 122.8V (Typ.) | Current Supply | |||
| Interface Features : | Position | - | Type | Connector | ||
| Backlight Driver : | No | |||||
LK600D3LB08 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1329.12(W)×747.63(H) mm, outline size of 1367(W)×788.6(H) mm, viewing area size of 1338.1(W)×756.6(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 19.8±1.0Kgs. As a ASV, Normally Black, Transmissive LCM product, LK600D3LB08 can provides 450 cd/m² display brightness 5000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 77% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed.
