10.4" EL 640×480RGB  200cd/m² LJ64H052 Sharp TFT LCD Display

10.4"  EL	640×480RGB 	200cd/m²  LJ64H052  Sharp  TFT LCD Display
10.4"  EL	640×480RGB 	200cd/m²  LJ64H052  Sharp  TFT LCD Display 10.4"  EL	640×480RGB 	200cd/m²  LJ64H052  Sharp  TFT LCD Display 10.4"  EL	640×480RGB 	200cd/m²  LJ64H052  Sharp  TFT LCD Display

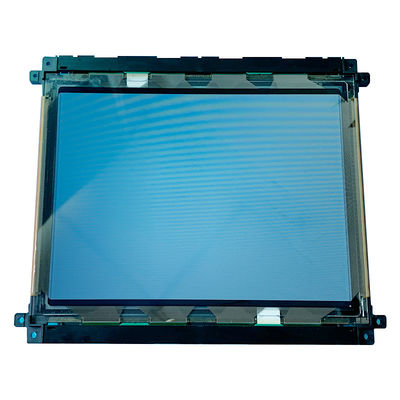

Large Image :  10.4" EL 640×480RGB  200cd/m² LJ64H052 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LJ64H052
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS

10.4" EL 640×480RGB  200cd/m² LJ64H052 Sharp TFT LCD Display

Description
Diagonal Size: 10.4 Inch Model: LJ64H052
Type: EL, EL Luminance: 200 Cd/m² (Typ.)
Outline Dim.: 267(H)×220(V) Mm Light Source: Self
Pixel Format: 640×480 [VGA] 77PPI Environment: Operating Temperature: -5 ~ 55 °C ; Storage Temperature: -40 ~ 80 °C
High Light:

WLED High Brightness LCD Display

,

CCFL TFT LCD Screen

,

SVGA Sharp TFT LCD Display

Sharp LJ64H052 Application Features

Basic Information : Brand Model Type Model Alias
SHARP LJ64H052 EL , EL -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -5 ~ 55 °C -40 ~ 80 °C -





Sharp LJ64H052 Mechanical Features

Panel Size : 10.4 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
640×480, VGA Rectangle 0.330×0.330 mm 0.330×0.330 mm [77PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
211.1×158.3 mm - 267×220 mm 22 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Face mounting holes (8 pcs)
Other Features : Panel Cover Weight Surface
- 680g (Typ.) -





Sharp LJ64H052 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
30/300mA (Min./Max.)(IL); 5/1500mA (Min./Max.)(VD) 5/12V (Typ.)(VL/VD) -
Interface Features : Position Type Interface
- Connector Parallel Data (4-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
HRS DF11-20DP-2DS 1 pcs 2.0 mm 20 pins
