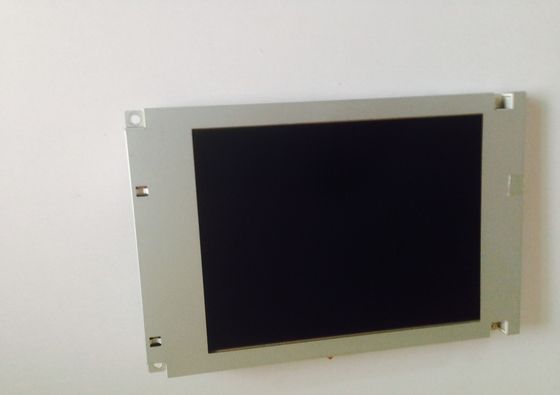

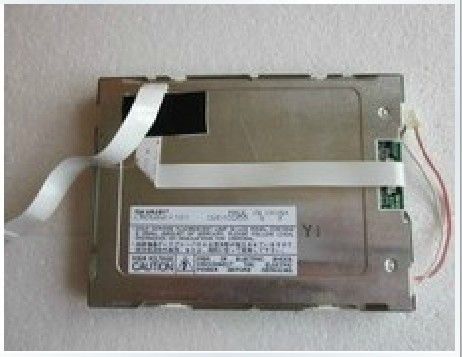

5" LCM 320×240RGB  100cd/m² LM050QC1T01 Sharp TFT LCD Display

5"  LCM  320×240RGB   100cd/m²   LM050QC1T01  Sharp  TFT LCD Display
5"  LCM  320×240RGB   100cd/m²   LM050QC1T01  Sharp  TFT LCD Display 5"  LCM  320×240RGB   100cd/m²   LM050QC1T01  Sharp  TFT LCD Display 5"  LCM  320×240RGB   100cd/m²   LM050QC1T01  Sharp  TFT LCD Display 5"  LCM  320×240RGB   100cd/m²   LM050QC1T01  Sharp  TFT LCD Display

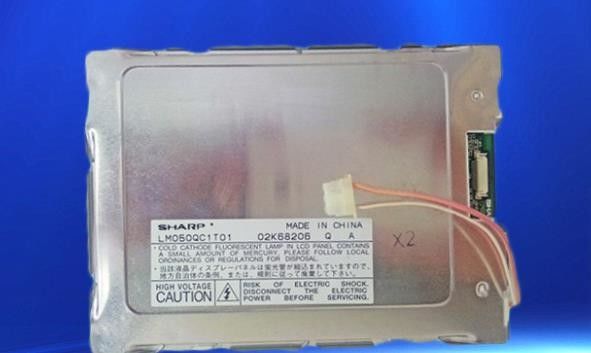

Large Image :  5" LCM 320×240RGB  100cd/m² LM050QC1T01 Sharp TFT LCD Display

Product Details:
Brand Name: SHARP
Certification: ISO9001
Model Number: LM050QC1T01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS

5" LCM 320×240RGB  100cd/m² LM050QC1T01 Sharp TFT LCD Display

Description
Screen Size: 5.0 Inch Model Name: LM050QC1T01
Outline(mm): 134 × 100 (H×V×D) Luminance: 100 Cd/m² (Typ.)
Pixel Number: 320(RGB)×240 (QVGA) 80PPI Backlight: 1 Pcs CCFL , 25K Hours , No Driver
Signal Type: Parallel Data (8-bit) , 20 Pins Connector Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C
High Light:

WLED High Brightness LCD Display

,

CCFL TFT LCD Screen

,

SVGA Sharp TFT LCD Display

Sharp LM050QC1T01 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
100 (Typ.) 35/35/15/25 (Typ.)(CR≥5) 230/120 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- STN, Normally Black, Transmissive 30 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6551K Color X:0.310; Y:0.340





Sharp LM050QC1T01 Mechanical Features

Panel Size : 5.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
320(RGB)×240 [QVGA] RGB Vertical Stripe 0.315×0.315 [80PPI] 0.105×0.315
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
100.8(H) × 75.6(V) 105.2(H) × 80.0(V) 134(H) × 100(V) 8.5 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Other Detail : Weight Panel Cover Treatment
145g - -





Sharp LM050QC1T01 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 0.6mA (Typ.) -
Interface Features : Position Signal Type
- Parallel Data (8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
IRISO IMSA-9632S-20A-T 0.5 mm 20 pins 1 pcs





Sharp LM050QC1T01 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
CCFL Edge light type 1 pcs Straight 25K(Min.) -
CCFL Electrical : Voltage Supply Current Supply Power
305±30V 5.0/5.5mA (Typ./Max.) 1.53W (Typ.)
Operating Frequency Kick-off Voltage
30/100KHz (Min./Max.) 520/780V (Min.)(Ta=+25/0℃)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-HNL





LM050QC1T01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×100(H) mm, viewing area size of 105.2(W)×80.0(H) mm, net weight of 145g. As a STN, Normally Black, Transmissive LCM product, LM050QC1T01 can provides 100 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 230/120 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
