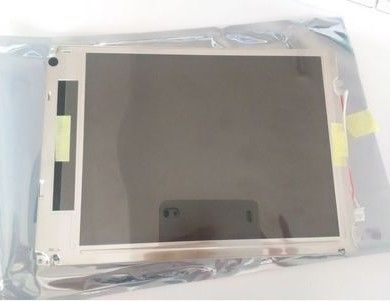

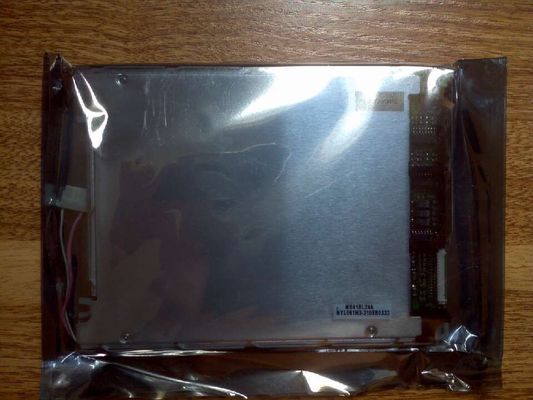

5.7" LCM 320×240RGB  200cd/m² LM057QB1T04 Sharp TFT LCD Display

5.7"	LCM	320×240RGB 	200cd/m²  LM057QB1T04  Sharp  TFT LCD Display
5.7"	LCM	320×240RGB 	200cd/m²  LM057QB1T04  Sharp  TFT LCD Display 5.7"	LCM	320×240RGB 	200cd/m²  LM057QB1T04  Sharp  TFT LCD Display

Large Image :  5.7" LCM 320×240RGB  200cd/m² LM057QB1T04 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LM057QB1T04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS

5.7" LCM 320×240RGB  200cd/m² LM057QB1T04 Sharp TFT LCD Display

Description
Brand: Sharp Model: LM057QB1T04
Pixel Format: 320×240 [QVGA] 70PPI Diagonal Size: 5.7 Inch
Luminance: 200 Cd/m² (Typ.) Outline Dim.: 154.6(H)×114.8(V) ×8.8(D) Mm
Light Source: CCFL [1 Pcs] , 25K Hours , W/O Driver Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
High Light:

WLED High Brightness LCD Display

,

CCFL TFT LCD Screen

,

SVGA Sharp TFT LCD Display

Sharp LM057QB1T04 Optical Details

Basic Information : Luminance 200 cd/m² (Typ.) Contrast Ratio 18 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 190/150 (Typ.)(Tr/Td) (ms)
Viewing Angle 25/25/10/20 (Typ.)(CR≥4)  Operating Mode STN, Black/White (Negative), Transmissive
Color Performance : Chromaticity - Support Color Monochrome





Sharp LM057QB1T04 Mechanical Details

Pixel Features : Number of Pixel 320×240 [QVGA] Arrangement Rectangle
Dot Pitch(W×H) 0.360×0.360 mm Pixel Pitch(W×H) 0.360×0.360 mm [70PPI]
Physical Size : Active Viewing 115.2(W)×86.4(H) mm Overall Dim. 154.6(W)×114.8(H) mm
Bezel Opening 121.3(W)×92.6(H) mm Overall Depth 8.3±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Other Detail : Mass 200g (Typ.) Surface -





Sharp LM057QB1T04 Interface Details

Signal Electrical : Input Current 0.9/1.35mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption 130.5/223.5mW (Typ./Max.) Signal Interface Parallel Data (4-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
molex 53261-1510 1 pcs 1.25 mm 15 pins





Sharp LM057QB1T04 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Bottom side)
Exchange - Amount 1 pcs Life 25K(Typ.) (Hours)
Lamp Electrical : Input Current 4.0±1.0mA Input Voltage 395V (Typ.)
Frequency 40/80KHz (Min./Max.) Turn-on Voltage 560/683V (Max.)(Ta=+25/0℃)
Consumption 1.58W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03VS-1 1 pcs 4.0 mm 3 pins BLL-3PINS-HNL
Backlight Driver : No





LM057QB1T04 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 154.6(W)×114.8(H)×8.8(D) mm, viewing area size of 121.3(W)×92.6(H) mm, net weight of 200g (Typ.). As a STN, Black/White (Negative), Transmissive LCM product, LM057QB1T04 can provides 200 cd/m² display brightness 18:1 transimissive contrast ratio, 25/25/10/20 (Typ.)(CR≥4) (L/R/U/D) viewing angle , and response time of 190/150 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 25K hours, external backlight driver is additionally needed.
