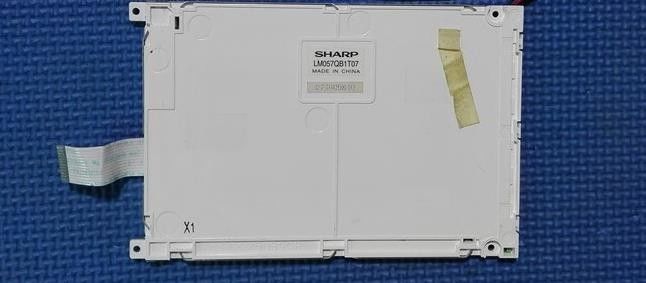

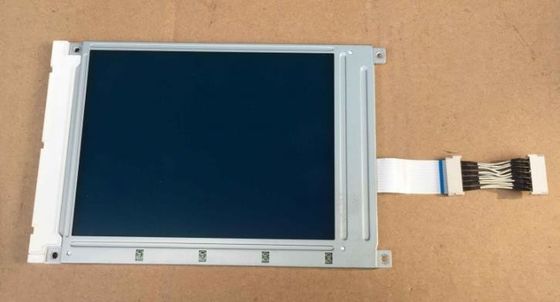

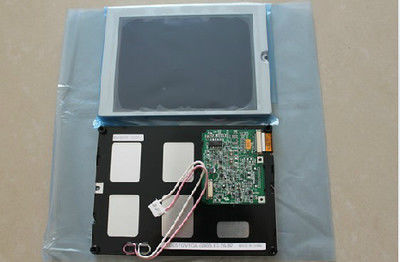

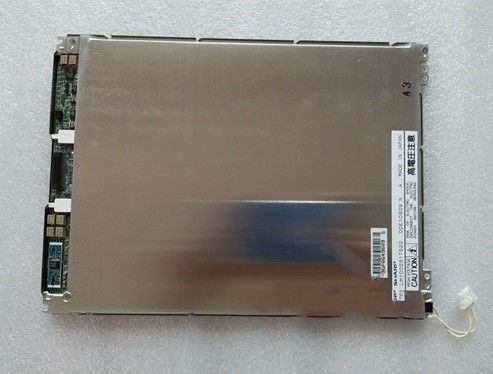

Product Details:
|
Panel Model: | LM057QB1T07 | Panel Size: | 5.7INCH |
---|---|---|---|
Resolution: | 320×240, QVGA, 70PPI | Brightness: | 150 Cd/m² (Typ.) |
Pixel Format: | Rectangle | Lamp Type: | 1S6P WLED , Without Driver |
Signal Interface: | Parallel Data (4-bit) , 12 Pins FPC | Environment: | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -25 ~ 60 °C |
High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
Basic Information : | Luminance | Work Mode | Contrast Ratio |
---|---|---|---|
150 cd/m² (Typ.) | STN, Blue mode (Negative), Transmissive | 6:1 (Typ.) (Transmissive) | |
Good View at | Viewing Angle | Response Time | |
- | 40/40/25/40 (Typ.)(CR≥2) | 190/210 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
- | Monochrome | - |
Screen Size : | 5.7" | |||
---|---|---|---|---|
Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
320×240, QVGA | Rectangle | 0.360×0.360 mm | 0.360×0.360 mm [70PPI] | |
Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
115.17×86.37 mm | 121.0×91.6 mm | 166×109 mm | 7.5 (Max.) mm | |
Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
Flat Rectangle | 4:3 | Landscape type | ||
Other Spec : | Mass | Panel Cover | Surface Treatment | |
160g | - | - |
Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
---|---|---|---|---|---|---|
5.0V (Typ.) | 1.2mA (Typ.) | 82/123mW (Typ./Max.) | ||||
Interface Features : | Signal Type | Physical Type | Interface Position | |||
Parallel Data (4-bit) | FPC | - | ||||
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
1 pcs | 12 pins | 1.25 mm |
Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
---|---|---|---|---|---|---|
WLED | Edge light type | - | 1S6P | Parallel | - | |
WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
3.4/3.9V (Typ./Max.) | 120/180mA (Typ./Max.) | |||||
Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
No | Wire | - |
LM057QB1T07 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 166(W)×109(H)×7.5(D) mm, viewing area size of 121.0(W)×91.6(H) mm, net weight of 160g. As a STN, Blue mode (Negative), Transmissive LCM product, LM057QB1T07 can provides 150 cd/m² display brightness 6:1 transimissive contrast ratio, 40/40/25/40 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 190/210 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
