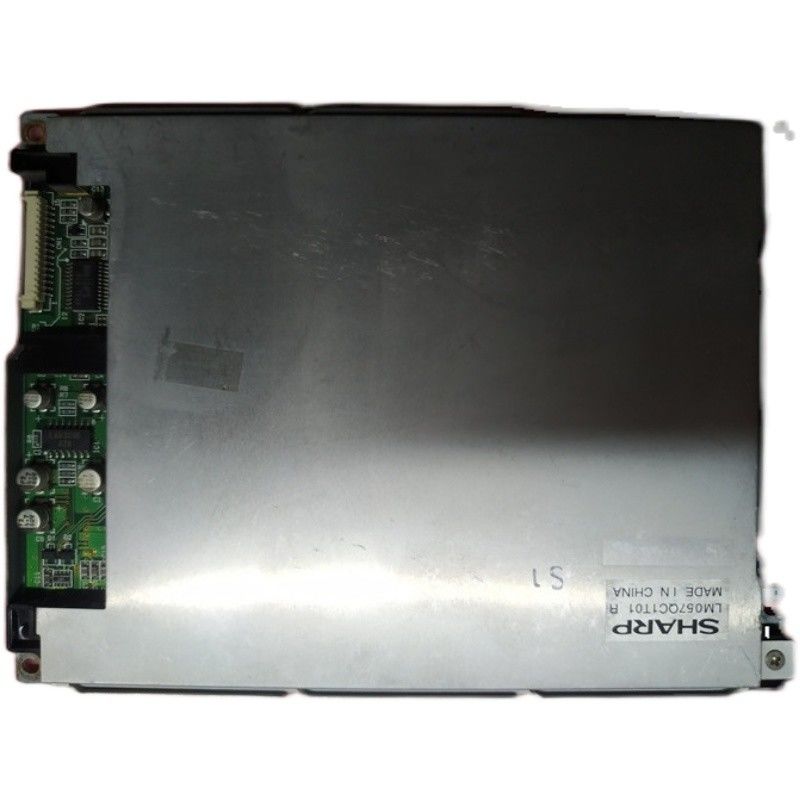

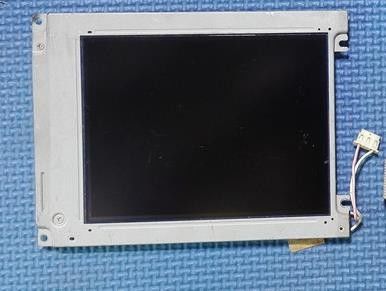

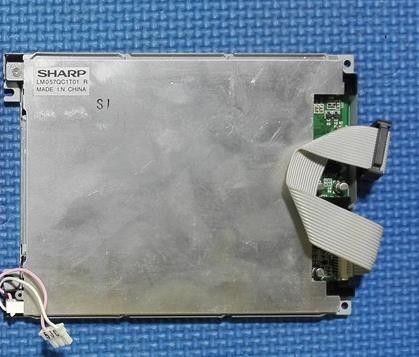

Product Details:
|
| Panel Model: | LM057QC1T01R | Panel Size: | 5.7" |
|---|---|---|---|
| Panel Brand: | Sharp | Resolution: | 320(RGB)×240, QVGA, 70PPI |
| Bezel Opening: | 121.3(W)×92.6(H) Mm | Brightness: | 180 Cd/m² (Typ.) |
| Lamp Type: | 1 Pcs CCFL , 25K Hours , Without Driver | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | WLED High Brightness LCD Display,CCFL TFT LCD Screen,SVGA Sharp TFT LCD Display |
||
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 154.6(W)×114.8(H) mm |
| Bezel Opening | 121.3(W)×92.6(H) mm | Overall Depth | 8.3±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.2, 2-R1.6) | |||
| Other Detail : | Mass | 200g (Typ.) | Surface | - |
| Basic Information : | Luminance | 180 cd/m² (Typ.) | Contrast Ratio | 40 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 450/100 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/35/60 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.330 | Support Color | Color |
| Color Temperature | 6116K | White Uniformity | - |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 25K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 4.0/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 400V (Typ.) | ||
| Frequency | 40/80KHz (Min./Max.) | Turn-on Voltage | 650/770V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.4W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
| Signal Electrical : | Input Current | 1.5/3.0mA (Typ.)(3.3V/5.0V)(IDD) | Input Voltage | 3.3/5.0V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53261-1571 | 1 pcs | 1.25 mm | 15 pins | ||
LM057QC1T01R supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 154.6(W)×114.8(H) mm, viewing area size of 121.3(W)×92.6(H) mm, net weight of 200g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM057QC1T01R can provides 180 cd/m² display brightness 40:1 transimissive contrast ratio, 50/50/35/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 450/100 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors.
