5.7" LCM 320×240RGB  180cd/m² LM057QC1T08 Sharp TFT LCD Display

5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display
5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display 5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display 5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display 5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display 5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display

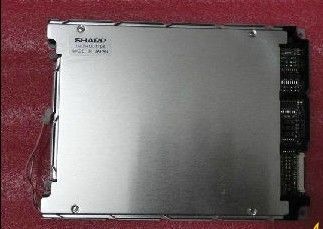

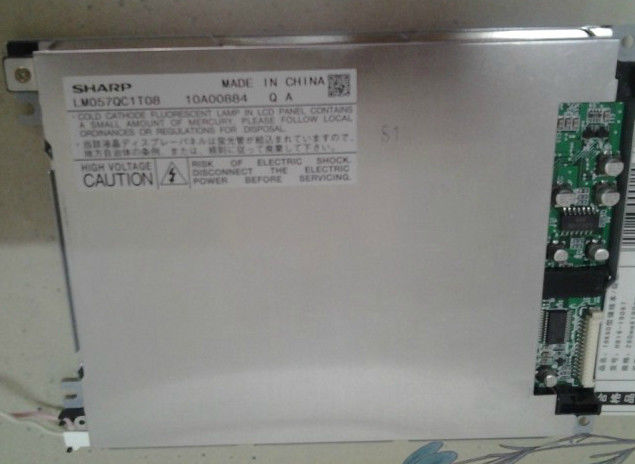

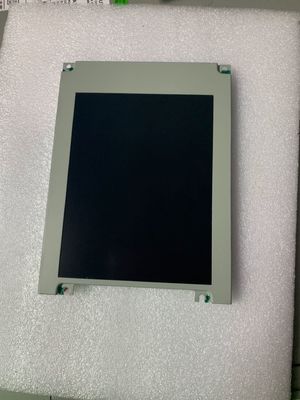

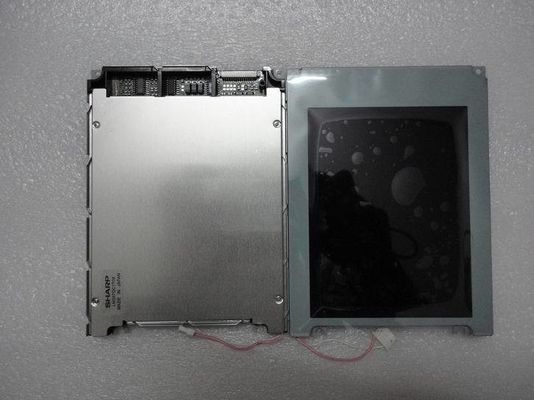

Large Image :  5.7" LCM 320×240RGB  180cd/m² LM057QC1T08 Sharp TFT LCD Display

Product Details:
Brand Name: SHARP
Certification: ISO9001
Model Number: LM057QC1T08
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS

5.7" LCM 320×240RGB  180cd/m² LM057QC1T08 Sharp TFT LCD Display

Description
Brand: Sharp Model: LM057QC1T08
Pixel Format: 320(RGB)×240 [QVGA] 70PPI Diagonal Size: 5.7 Inch
Outline Dim.: 154.6(H)×114.8(V) Mm Light Source: CCFL [1 Pcs] , 25K Hours , W/O Driver
Interface Type: Parallel Data (8-bit) 15 Pins Connector Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C
High Light:

WLED High Brightness LCD Display

,

CCFL TFT LCD Screen

,

SVGA Sharp TFT LCD Display

Sharp LM057QC1T08 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
180 cd/m² (Typ.) STN, Normally Black, Transmissive 40:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 50/50/35/60 (Typ.)(CR≥2) 450/100 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6116K Color X:0.320; Y:0.330





Sharp LM057QC1T08 Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 118.2×89.4 mm 154.6×114.8 mm 8.3±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
200g (Typ.) - -





Sharp LM057QC1T08 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
CCFL Edge light type (Bottom side) 25K(Typ.) 1 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
400V (Typ.) 4.0/6.0/6.0mA (Min./Typ./Max.) 2.4W (Typ.)
Operating Frequency Startup Voltage
40/80KHz (Min./Max.) 650/770V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-HNL





Sharp LM057QC1T08 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3/5.0V (Typ.)(VDD) 1.5/3.0mA (Typ.)(3.3V/5.0V)(IDD) -
Interface Features : Signal Type Physical Type Interface Position
Parallel Data (8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
molex 53261-1571 1 pcs 15 pins 1.25 mm





LM057QC1T08 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 154.6(W)×114.8(H) mm, viewing area size of 118.2(W)×89.4(H) mm, net weight of 200g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM057QC1T08 can provides 180 cd/m² display brightness 40:1 transimissive contrast ratio, 50/50/35/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 450/100 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 25K hours, external backlight driver is additionally needed.



5.7"	LCM	320×240RGB 	180cd/m²  LM057QC1T08  Sharp TFT LCD Display 0
