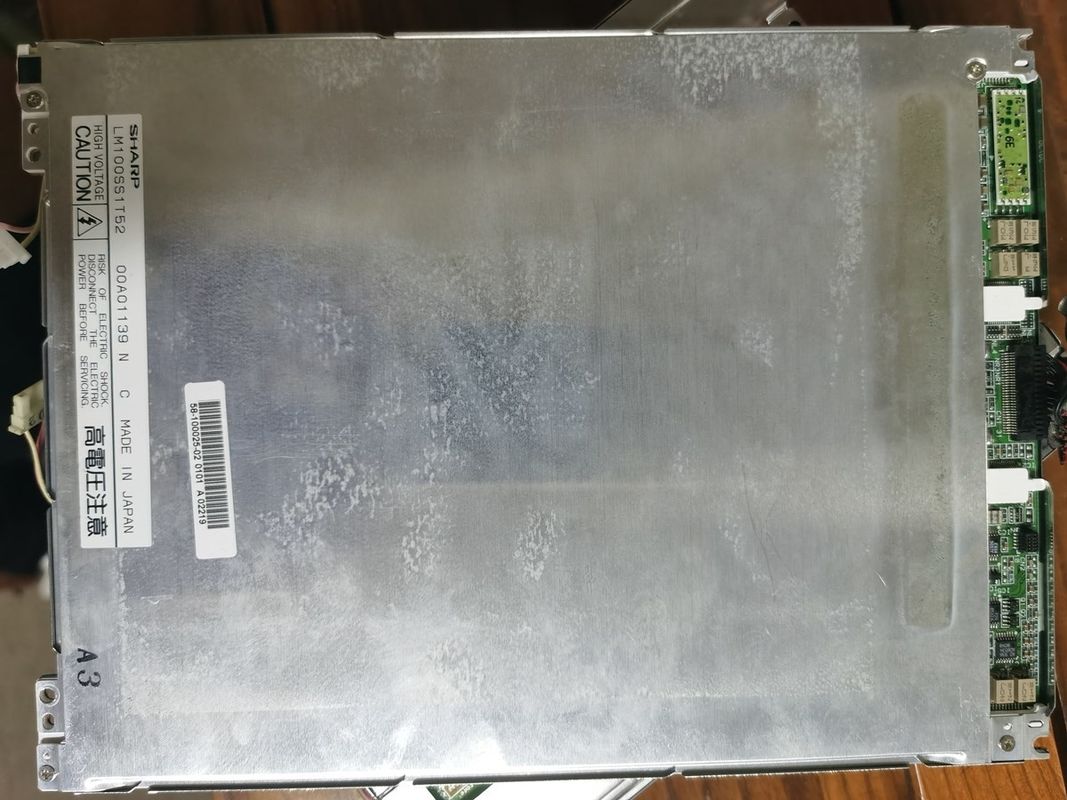

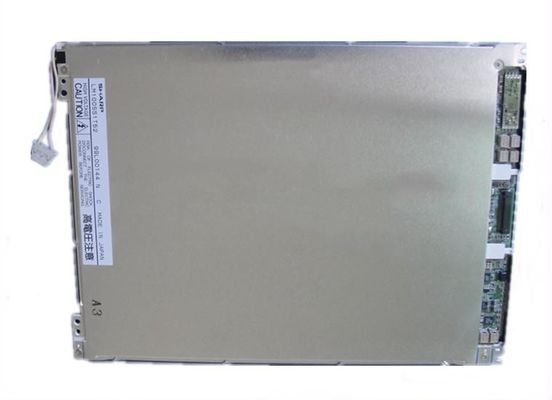

Product Details:
|
| Panel Model: | LM100SS1T52 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 70 Cd/m² (Typ.) | Resolution: | 800(RGB)×600, SVGA, 99PPI |
| Panel Size: | 10.0INCH | Bezel Opening: | 208.0(W)×157.0(H) Mm |
| Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C | Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver |
| Highlight: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Panel Size : | 10.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 203.98×152.98 mm | 208.0×157.0 mm | 236.8×172.5 mm | 6.5±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 340g (Typ.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 70 cd/m² (Typ.) | STN, Normally Black, Transmissive | 50:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 30/30/25/15 (Typ.)(CR≥5) | - | 220/80 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5616K | Color | X:0.330; Y:0.339 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 165mA (Typ.) | 3.3V (Typ.) | 545mW (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-W31P-HF | 1 pcs | 1.25 mm | 31 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 1 pcs | 10K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.2/3.5ma (Typ./Max.) | 600V (Typ.) | 1.32W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1150/1350V (Max.)(Ta=+25/0℃) | 50/80Khz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LNH | |
LM100SS1T52 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 203.98(W)×152.98(H) mm, outline size of 236.8(W)×172.5(H)×6.8(D) mm, viewing area size of 208.0(W)×157.0(H) mm, net weight of 340g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM100SS1T52 can provides 70 cd/m² display brightness 50:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 10K hours, external backlight driver is additionally needed.
