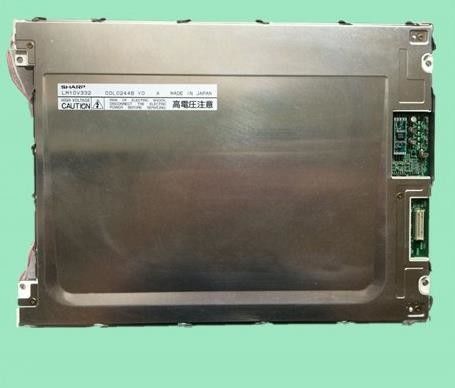

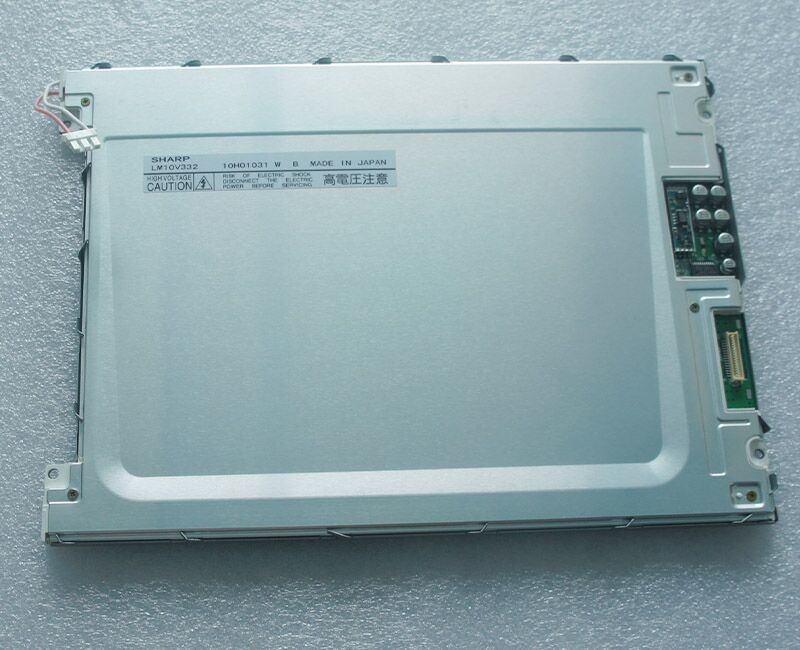

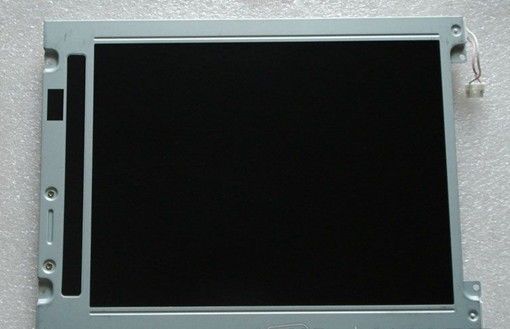

Product Details:
|
| Panel Model: | LM10V332 | Panel Size: | 10.4INCH |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 76PPI | Brightness: | 160 Cd/m² (Typ.) |
| Bezel Opening: | 215.4(W)×162.4(H) Mm | Lamp Type: | 1 Pcs CCFL , 40K Hours , Without Driver |
| Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C | Viewing Angle: | 30/30/25/15 (Typ.) |
| High Light: | SVGA Sharp TFT LCD Screen,XGA Industrial LCD Panel,LVDS TFT LCD Display |
||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×162.4 mm | 246×193.6 mm | 8.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 450g (Typ.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 160 cd/m² (Typ.) | STN, Normally Black, Transmissive | 50:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 30/30/25/15 (Typ.)(CR≥5) | - | 220/80 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9154K | Color | X:0.275; Y:0.320 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 90/135mA (Typ./Max.) | 5.0V (Typ.) | 450/680mW (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 1 pcs | 40K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.5mA (Typ.) | 520V (Typ.) | 2.86W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 760/1300V (Max.)(Ta=+25/0℃) | 40/70KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
LM10V332 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246(W)×193.6(H) mm, viewing area size of 215.4(W)×162.4(H) mm, net weight of 450g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM10V332 can provides 160 cd/m² display brightness 50:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 40K hours, external backlight driver is additionally needed. LM10V332 utilizes Parallel Data (8-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.).
